6620101501

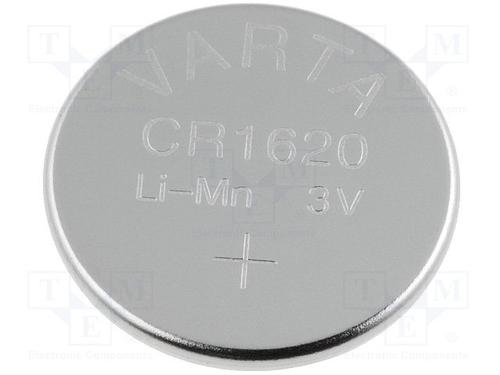

VARTA 6620101501 Battery, Coin Cell, Single Cell, Lithium Manganese Dioxide, 70 mAh, 3V, 1620, Pressure Contact

The is a 1620 3V/70mAh coin-cell Non-rechargeable Battery features a lithium manganese dioxide technology with single cell and pressure contact terminals. Applications include remote control key fobs, calculator, memory back-up and real time clocks. These cells offer an excellent shelf life, good high-rate and low-rate capability, a wide operating temperature range. Potential design-in applications for these products are electronic, telecommunication, metering, instrumentation, office and other portable equipment use. Ability to provide a variety of laser welded termination tabs.

.

Standard mounting

.

Electronic segment

.

70mAh Load 20kR at 20°C down to 2V typical capacity

.

-20 to 65°C Discharge temperature range

.

High open circuit and load voltage

.

High energy density

.

Flat discharge profile under low to medium rate applications
