板对板与夹层连接器 40P RECPT W/POLARIZATION
**BERGSTAK® Mezzanine Connectors**
The BERGSTAK® Series from FCI offers versatile, high density parallel board to board connector system offering 12 PCB stack heights in nine sizes up to two hundred positions.
贸泽:
板对板与夹层连接器 40P RECPT W/POLARIZATION
Allied Electronics:
Conn; Rect.; Board-to-Board, Receptacle; Vertical; 40 Pos.; Dual Row; Bergstak
安富利:
Conn Board to Board RCP 40 POS 0.8mm Solder ST SMD T/R
Chip1Stop:
Conn Fine Pitch Connector RCP 40 POS 0.8mm Solder ST SMD T/R
Verical:
Conn Fine Pitch Connector RCP 40 POS 0.8mm Solder ST Top Entry SMD Bergstak® T/R
儒卓力:

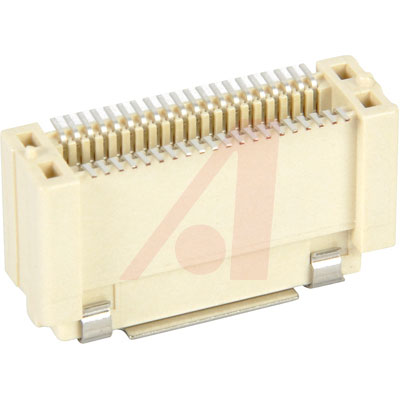

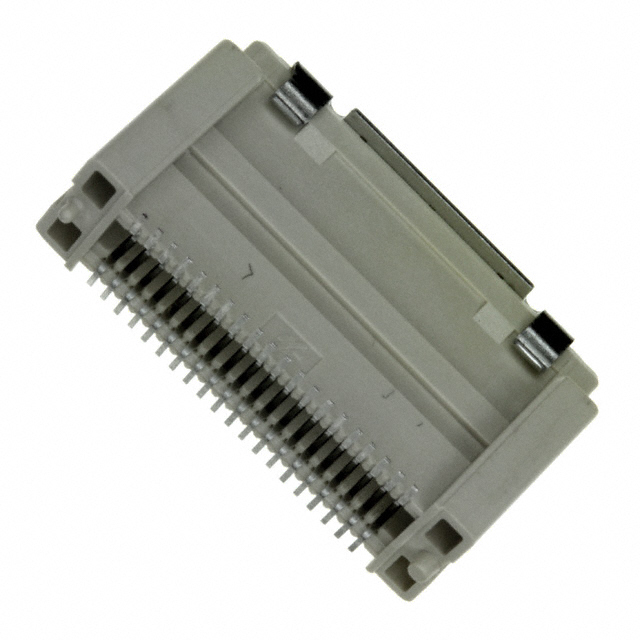

**40P BTB RECEPTACLE 2R VERTICAL **
触点数 40
极性 Female
触点电镀 Gold
绝缘电阻 100 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 40
拔插次数 100
额定电流Max 0.8A/触头
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压Max 100 VAC
接触电阻Max 50 mΩ
安装方式 Surface Mount
引脚间距 800 µm
长度 21.8 mm
宽度 6.8 mm
高度 11.7 mm
引脚间距 800 µm
触点材质 Copper Alloy
工作温度 -40℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
