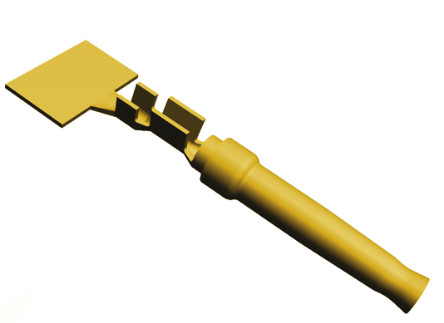

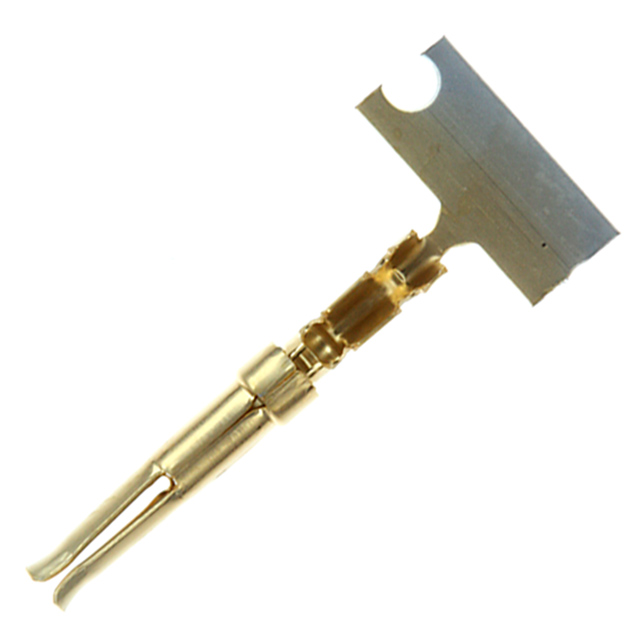

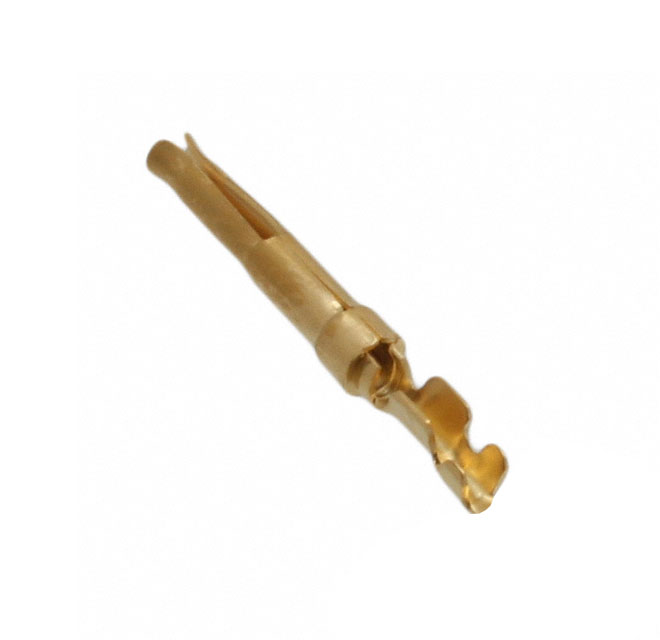

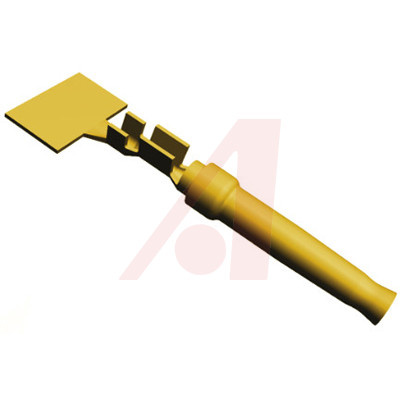

66505-4

AMP FROM TE CONNECTIVITY  66505-4  压接金属触芯, D-SUB, 母, 28-24AWG

AMPLIMITE D-Sub HDP - 20 系列 20 DF 压接咬合触点

一系列 HDP-20 尺寸 20 DF 精密成型压接扣入式触点，适合与 AMPLIMITE d-sub 连接器系统一起使用。 触点使用压接工具（库存号 446-816）和插入/拔出工具（库存号 446-822）。

电镀接触面积 | 0.8μm 镀金

---|---

触点电阻 | 15mΩ（最大值）

触点材料 | 铜合金

额定电流 | 6A 插头，3A 插座

额定温度 | \- 55°C 至 +105°C

接合次数 | 100

欧时:
TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 插座 D-sub 连接器触点 66505-4, 镀金 触点

得捷:
CONN SOCKET 24-28AWG GOLD CRIMP

贸泽:
D-Sub Contacts HD-20 24-28 AWG CRM SKT Reel/10000

e络盟:
AMP FROM TE CONNECTIVITY  66505-4  压接金属触芯, D-SUB, 母, 28-24AWG

艾睿:
This 66505-4 connector contact from TE Connectivity comes in a variety of metals, lengths, and surface area ratings so you&s;re always getting the one you need. It has a straight body orientation. It has a socket type gender. This has a Connector D-Subminiature connector. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 14.35 mm long and 2.15 mm. This connector contact has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its wire is 24-28 AWG. It uses the crimp termination method.

Allied Electronics:
HD-20 S&F; CONT AU PL, HD 20 DF SOCKET PLTD

安富利:
Contact SKT Crimp ST Cable Mount Strip

Chip1Stop:
Contact SKT Crimp ST Cable Mount Strip

Verical:
Contact SKT 20 Size Crimp ST Cable Mount 24-28AWG T/R

Newark:
# AMP - TE CONNECTIVITY  66505-4  D Sub Contact, TE AMPLIMITE HDP-20 Series Connectors, Socket, Phosphor Bronze, Gold Plated Contacts

MASTER:
D Sub Contact - TE AMPLIMITE HDP-20 Series Connectors - Socket - Phosphor Bronze - Gold Plated Contacts.

Powell:
Standard Cable Connectors

Online Components:
HD 20 DF SOCKET PLTD

ICbanQ:
CONN SOCKET 24-28AWG GOLD CRIMP

Electro Sonic:
D Sub Contact - TE AMPLIMITE HDP-20 Series Connectors - Socket - Phosphor Bronze - Gold Plated Contacts.
