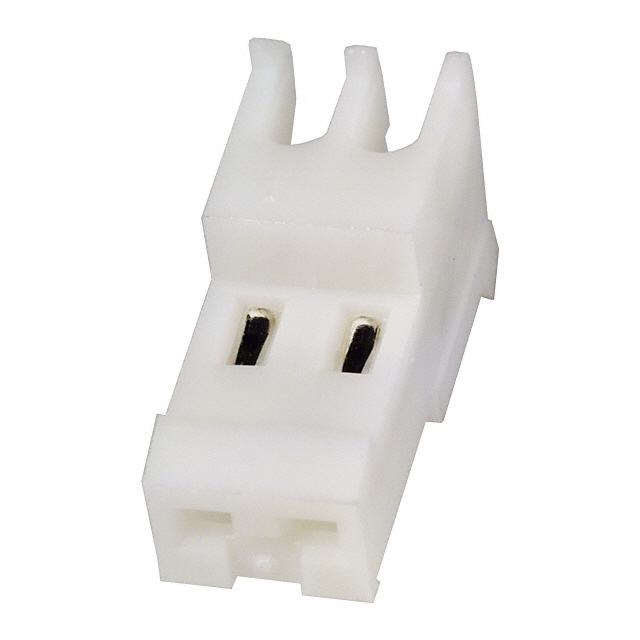

640621-2

Conn IDC Connector F 2POS 2.54mm IDT RA Cable Mount Loose Piece

02P MTA100 CONN ASSY F/T NATL

Product Highlights

MTA-100 Connectors

Number of Positions = 2

Mating Type = Receptacle

Connector Type = Feed Thru

Wire-to-Board Application

得捷:
CONN RCPT 2P IDC 24AWG TIN-LEAD

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this idc connector 640621-2 header connector from TE Connectivity. This F connector&s;s 2 contacts that are made out of copper alloy and plated with tin-lead over nickel. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. This is a 1-row connector. It has a female type gender. It has a right angle body orientation. This device has a maximum current rating of 5 A/contact. This product is 5.08 mm long, 7.75 mm tall and 13.21 mm deep. It uses the idt termination method. 640621-2 is housed in white nylon. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Bag/Box

MASTER:
02P MTA100 CONN ASSY F/T NATL

Electro Sonic:
02P MTA100 CONN ASSY F/T NATL
