643814-3概述

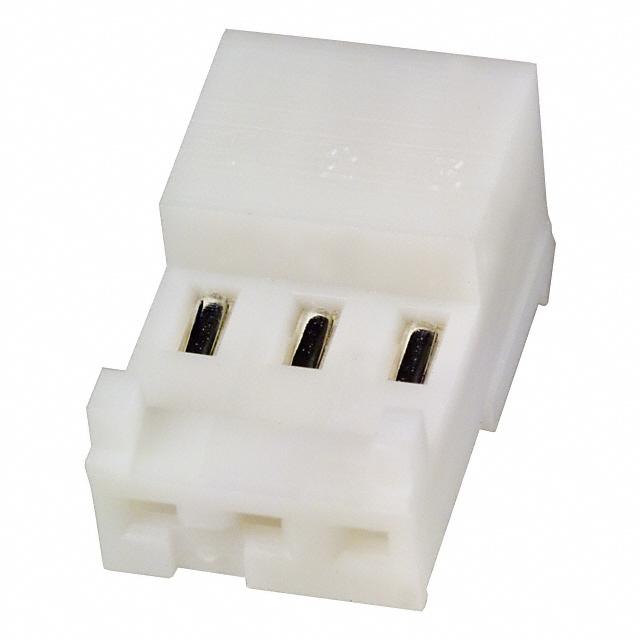

Conn IDC Connector F 3POS 2.54mm IDT RA Cable Mount Bag

03P MTA100 CONN ASSY POL RIB

Product Highlights

MTA-100 Connectors

Number of Positions = 3

Mating Type = Receptacle

Connector Type = Closed End

Wire-to-Board Application


得捷:
CONN RCPT 3P IDC 24AWG TIN-LEAD


立创商城:
643814-3


艾睿:
Mounting this idc connector 643814-3 header connector from TE Connectivity to your printed circuit board can help you support multiple physical configuration options. This F connector&s;s 3 contacts that are made out of copper alloy and plated with tin-lead over nickel. This is a 1-row connector. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a female type gender. This device has a maximum current rating of 5 A/contact. This connector has an operating temperature of -55 to 105 °C. 643814-3 is housed in white nylon. It uses the idt termination method. This product is 7.62 mm long, 6.99 mm tall and 13.21 mm deep.


安富利:
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece


Verical:
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Bag/Box


Newark:
# AMP - TE CONNECTIVITY  643814-3  03P MTA100 CONN ASSY POL RIB New


MASTER:
03P MTA100 CONN ASSY POL RIB


Electro Sonic:
03P MTA100 CONN ASSY POL RIB


643814-3中文资料参数规格
技术参数

触点数 3

线规 24 AWG

触点电镀 Tin Lead

额定电压AC 250 V

排数 1

易燃性等级 UL 94 V-2

针脚数 3

带凸肩 No

额定电流Max 5A/触头

工作温度Max 105 ℃

工作温度Min -55 ℃

额定电压Max 250 VAC

接触电阻Max 6 mΩ

封装参数

引脚数 3

封装 -

引脚间距 2.54 mm

外形尺寸

长度 7.62 mm

宽度 6.99 mm

高度 6.99 mm

封装 -

引脚间距 2.54 mm

物理参数

外壳颜色 White

颜色 White

触点材质 Copper Alloy

工作温度 -55℃ ~ 105℃

外壳材质 Nylon

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

ELV标准 Non-Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册
