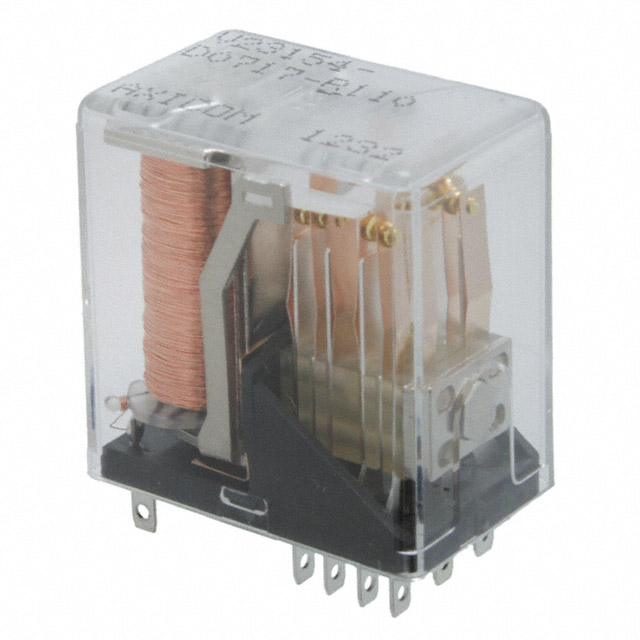

Electromechanical Relay 12VDC 220Ω 2A DPDT 19mm 24mm 35.5mm Plug-In Signal Relay
V23154C 717B104
Product Highlights
V23154/Cradle Relay N Series
DC Actuating System
Input Voltage = 12 VDC
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 2 Amps.
得捷:
RELAY GEN PURPOSE DPDT 2A 12VDC
艾睿:
Signal Relay 12VDC 2A DPDT19x24x35.5mm Plug-In
安富利:
Electromechanical Relay DPDT 2A 12VDC 220Ohm Plug-In
Chip1Stop:
Electromechanical Relay DPDT 2A 12VDC 220Ohm Plug-In
Verical:
Electromechanical Relay 12VDC 220Ohm 2A DPDT 19mm 24mm 35.5mm Plug-In Signal Relay
MASTER:
V23154C 717B104
Powell:
Communications/Signal PC Board Relays
Electro Sonic:
V23154C 717B104
触点电镀 Gold
输入电压DC 12.0 V
触点额定电流 2.00 A
线圈电压 12 VDC
线圈电流 54.54 mA
线圈功率DC 650 mW
线圈电阻 220 Ω
额定电流Max 2 A
线圈电压DC 12 V
开关电流Max 2 A
工作温度Max 70 ℃
工作温度Min -40 ℃
安装方式 Plug In, Solder
长度 19 mm
宽度 24 mm
高度 35.5 mm
触点材质 Silver, Gold
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
