61729-1010BLF概述

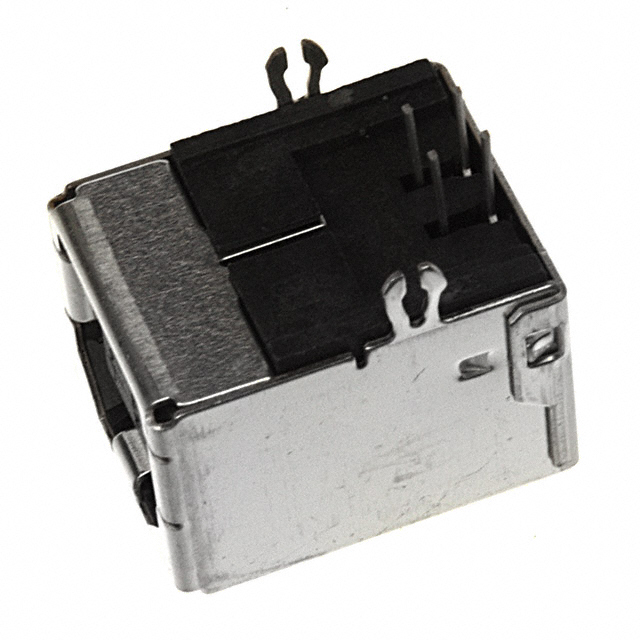

AMPHENOL FCI  61729-1010BLF  连接器, USB, 母

FCI USB connectors are widely applied and will remain so in the PC and peripheral space — and are more and more being used as a standard IO interconnect in applications in the Industrial, Instrumentation, medical and Automotive industry.

FCI offers specific USB 2.0 connectors ideal for use in connecting removable storage devices into automotive multimedia systems. These connectors meet typical automotive application requirements in terms of temperature range; robustness and mating cycles.


贸泽:
USB Connectors USB TYPE "B" CON LEADFREE


e络盟:
AMPHENOL FCI  61729-1010BLF  连接器, USB, 母


艾睿:
Conn USB Type B RCP 4 POS 2.5mm Solder RA Thru-Hole 4 Terminal 1 Port Tube


Allied Electronics:
Conn; Data; USB; TypeB; Socket; 4Cnts; RightAngle; ThruHole; Black


Jameco:
Connector USB Type B RCP 4 Position 2.5mm Solder Right Angle Thru-Hole 4 Terminal 1 Port


安富利:
Conn USB Type B RCP 4 POS 2.5mm Solder RA Thru-Hole 4 Terminal 1 Port Tube


Chip1Stop:
Conn USB 2.0 Type B RCP 4 POS 2.5mm Solder RA Thru-Hole 4 Terminal 1 Port Tube


Verical:
Conn USB 2.0 Type B RCP 4 POS 2.5mm Solder RA Thru-Hole 4 Terminal 1 Port Tube


61729-1010BLF中文资料参数规格
技术参数

触点数 4

极性 Female

触点电镀 Gold

额定电流 1.5 A

绝缘电阻 1000 MΩ

方向 Right Angle

针脚数 4

拔插次数 1500

封装参数

安装方式 Through Hole

外形尺寸

长度 12.2 mm

宽度 16 mm

高度 11 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Copper Alloy

工作温度 -55℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15
