650951-5

2.54 mm 64 位置 插头 直角 通孔 欧洲卡 C 型 连接器

96 针位 DIN 插头，公引脚 镀金 通孔，直角

得捷:
CONN DIN PLUG 96POS PCB RA GOLD

立创商城:
650951-5

艾睿:

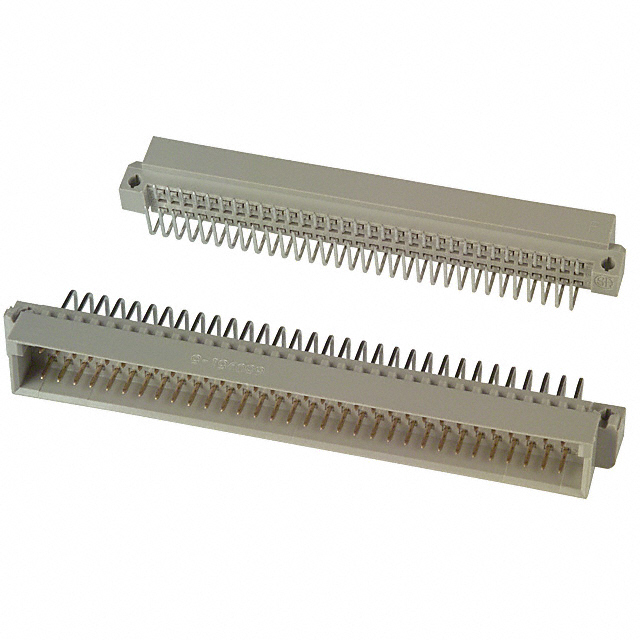

The din 41612 650951-5 backplane connector, developed by TE Connectivity, can provide you with a much faster transfer rate as opposed to other types of connectors. This PL connector&s;s 64 contacts that are made out of brass and plated with gold over nickel. It has a right angle body orientation. It has a plug type gender. This is a 2-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 1.5 A/contact. This backplane connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. 650951-5 is housed in gray polyester. This product is 94 mm long, 11.1 mm tall and 17.73 mm deep.

安富利:
Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Box

Newark:
# AMP - TE CONNECTIVITY  650951-5  DIN 41612 Connector, 64 Contacts, Plug, 2.54 mm, 2 Row, a + c

MASTER:
064 EURO TYPE C PIN ST ASSY

Powell:
Eurocard Type C

Online Components:
064 EURO TYPE C PIN ST ASSY

Electro Sonic:
064 EURO TYPE C PIN ST ASSY
