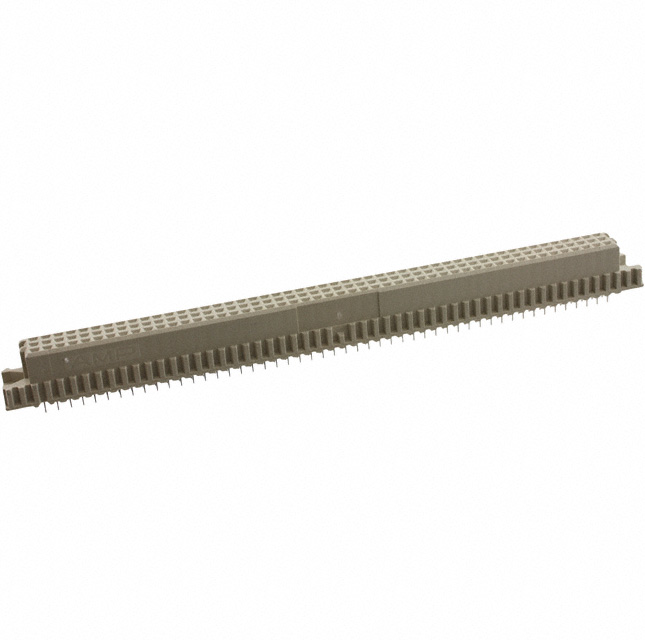

650405-5

Conn DIN 41612 RCP 150POS 2.54mm Solder ST Thru-Hole

150 针位 DIN 插座，母型插口 镀金 通孔

立创商城:
650405-5

得捷:
CONN DIN RCPT 150POS PCB GOLD

艾睿:
The din 41612 650405-5 backplane connector, developed by TE Connectivity, can provide you with a much faster transfer rate as opposed to other types of connectors. This RCP connector&s;s 150 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a receptacle type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. This is a 3-row connector. This device has a maximum current rating of 1.5 A/contact. This product is 139.7 mm long, 11.5 mm tall and 10.6 mm deep. This backplane connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. 650405-5 is housed in gray polyester.

Jameco:
Connector DIN 41612 Recepticle 150 Position 2.54mm Solder Straight Thru-H

安富利:
Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole

MASTER:
Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole

Powell:
Eurocard Type C

Electro Sonic:
150 EURO TYPE C RECEPT ST ASSY
