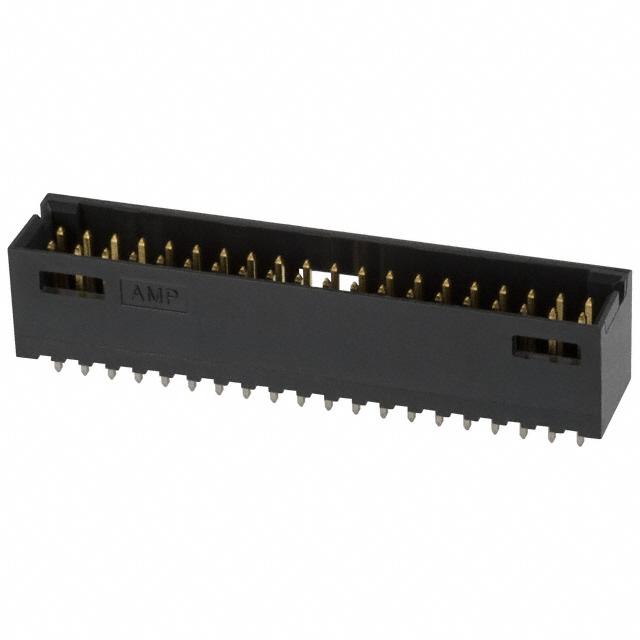

6-102618-8

Conn Shrouded Header HDR 40POS 2.54mm Solder ST Thru-Hole

40 MODII HDR DRST SHRD .100CL

Product Highlights

Connector

Housing Gender = Header - Pin

Contact Gender = Pin

Header Type = Shrouded

40 Positions

得捷:
CONN HEADER VERT 40POS 2.54MM

贸泽:
Headers & Wire Housings HDR 2X20P VRT T/H

艾睿:
Reduce safety concerns with this shrouded 6-102618-8 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. It has a header type gender. This device has a maximum current rating of 3 A/contact. This component will be shipped in tray format. This connector has an operating temperature of -55 to 105 °C. 6-102618-8 is housed in black thermoplastic. This product is 53.64 mm long, 11.18 mm tall and 10.16 mm deep. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 40 POS 2.54mm Solder ST Thru-Hole Tray

Powell:
.100 inch AMPMODU Headers

Online Components:
40 MODII HDR DRST SHRD .100CL

Electro Sonic:
40 MODII HDR DRST SHRD .100CL
