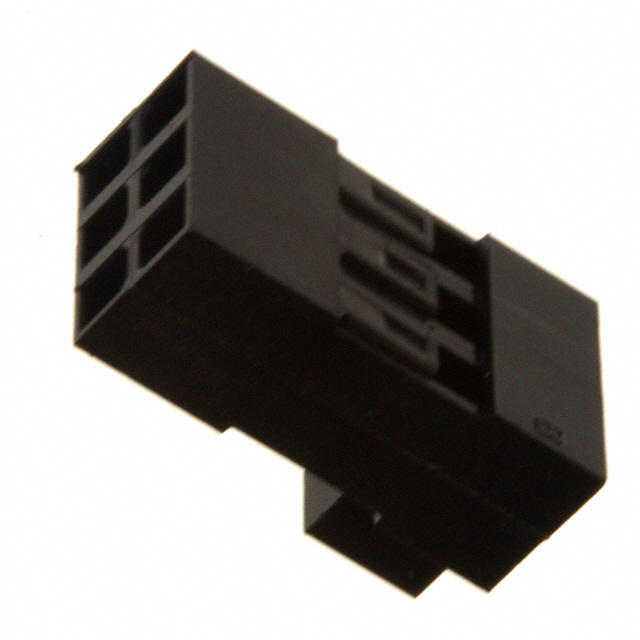

AMPHENOL FCI 65846-015LF Wire-To-Board Connector, 2.54mm, 6Contacts, Receptacle, Mini-PV 65846 Series, Crimp, 2Rows
**Overview:**
The innovative PV® crimp-to-wire system connects discrete wire to printed circuit boards. High reliability dual-metal receptacle terminals plug to industry standard 0.025 inch 0.635mm square posts. A variety of containment, protection and guidance options are available for both sides of the connector interface.
**Features:**
* Unique dual-metal PV® receptacle contact maintains contact pressure through 1000 mating cycles
* A beryllium copper spring provides high normal force at the mating interface, while the brass contact body produces a reliable, gas-tight crimp termination
* Choice of three different spring pressures allows the user to customize insertion and withdrawal forces to individual application requirements
* Shrouded header side walls engage with the sides of the MINI-LATCH housing to provide additional retention
* MINI-LATCH housing firmly retains PV® wire contactsAvailable in single or double row configurations
* Keyed MINI-LATCH housings and header keyways provide polarization to prevent mis-mating
* Two wall header design provides mechanical benefits plus economy
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
65846-015LF FCI Electronics 法马通 | 当前型号 | 当前型号 |
90311-006LF 法马通 | 功能相似 | 65846-015LF和90311-006LF的区别 |
90311-008LF 法马通 | 功能相似 | 65846-015LF和90311-008LF的区别 |
90311-016LF 法马通 | 功能相似 | 65846-015LF和90311-016LF的区别 |
