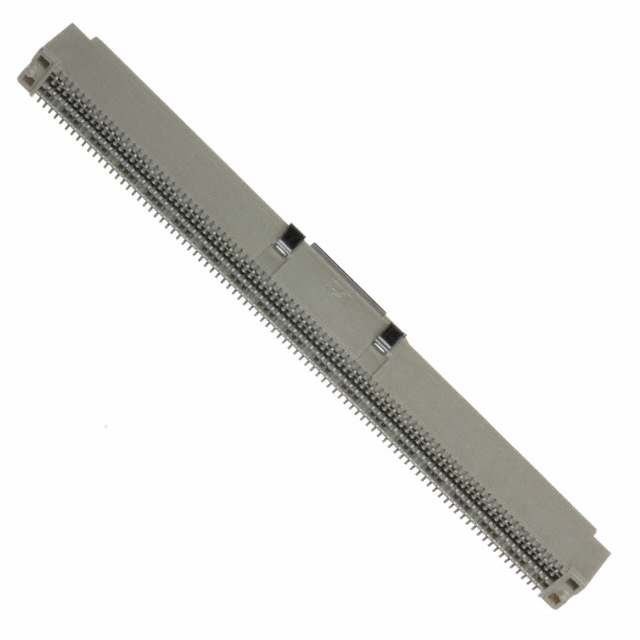

AMPHENOL FCI 61083-184402LF 61083-184402LF-0.8MM B TO B PLUG ASSY, TAP/RL 72K2698 新
**BERGSTAK® Mezzanine Connectors**
The BERGSTAK® Series from FCI offers versatile, high density parallel board to board connector system offering 12 PCB stack heights in nine sizes up to two hundred positions.
e络盟:
AMPHENOL FCI 61083-184402LF CONN, PLUG, 180POS, 2ROW, 0.8MM, SMT 新
Allied Electronics:
Conn; Rect.; Board-to-Board; Header; Vertical; 180 Pos.; Dual Row; Bergstak
安富利:
Conn Board to Board PL 180 POS 0.8mm Solder ST SMD T/R
Verical:
Conn Fine Pitch Connector PL 180 POS 0.8mm Solder ST SMD T/R
触点数 180
极性 Male
触点电镀 Gold
排数 2
易燃性等级 UL 94 V-0
针脚数 180
额定电流Max 0.8A/触头
接触电阻Max 50 mΩ
安装方式 Surface Mount
引脚间距 800 µm
长度 77.8 mm
宽度 6.00 mm
高度 7.7 mm
引脚间距 800 µm
触点材质 Brass
工作温度 -40℃ ~ 85℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
61083-184402LF FCI Electronics 法马通 | 当前型号 | 当前型号 |
61083-184502LF 法马通 | 完全替代 | 61083-184402LF和61083-184502LF的区别 |
61083-184602LF 法马通 | 完全替代 | 61083-184402LF和61083-184602LF的区别 |
61083-184102 法马通 | 功能相似 | 61083-184402LF和61083-184102的区别 |
