6-534998-4

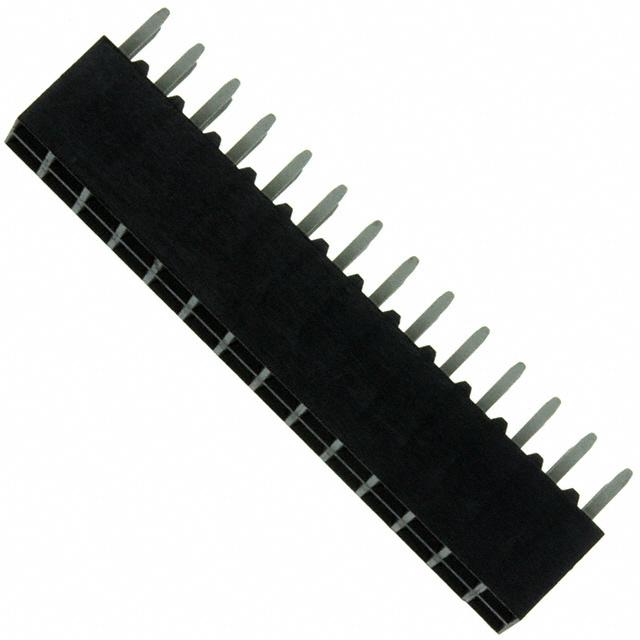

TE CONNECTIVITY 6-534998-4 Board-To-Board Connector, 2.54mm, 28Contacts, Receptacle, AMPMODU Mod IV Series, Through Hole

28 位置 插座 通孔

得捷:
CONN RCPT 28POS 0.1 GOLD PCB

艾睿:
As an added safety precaution, the socket strip 6-534998-4 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This RCP connector&s;s 28 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 2 A/contact. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C. This product is 35.56 mm long, 6.73 mm tall and 5.03 mm deep. 6-534998-4 is housed in black polychlorinated terphenyl.

Verical:
Conn Socket Strip RCP 28 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# TE CONNECTIVITY  6-534998-4  Board-To-Board Connector, 2.54 mm, 28 Contacts, Receptacle, AMPMODU Mod IV Series, Through Hole

MASTER:
RECEPTACLE ASSEMBLY, MOD IV, DOUBLE ROW, DUAL ENTRY, .100X.100CL, VERTICAL MOUNT, AMPMODU

Powell:
.100 inch AMPMODU Receptacles

Online Components:
28 MODIV VRT DR CE 100/125

Electro Sonic:
28 MODIV VRT DR CE 100/125
