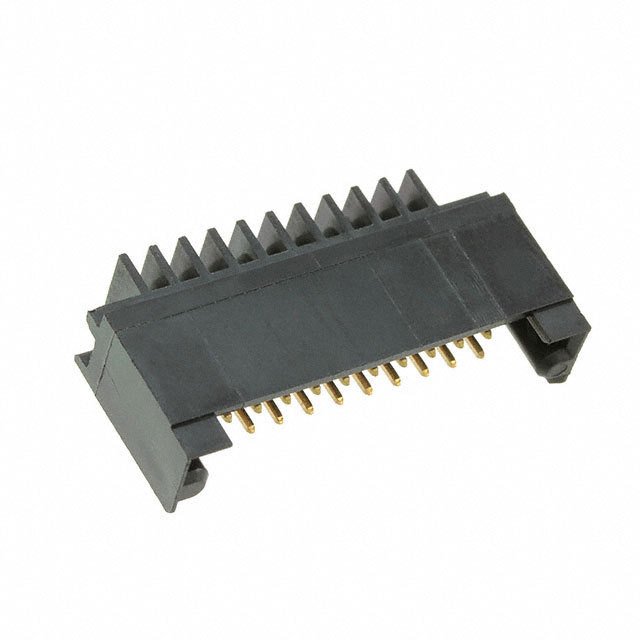

6-102589-2

Conn Shrouded Header HDR 20POS 2.54mm Solder RA Thru-Hole

针座 通孔，直角 20 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 20POS 2.54MM

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded 6-102589-2 header connector from TE Connectivity. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. This product is 35.05 mm long, 8.12 mm tall and 19.35 mm deep. 6-102589-2 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tube

Newark:
# AMP - TE CONNECTIVITY  6-102589-2  20 MODII 2PC HDR DRRA SHRD, ROHS New

MASTER:
20 MODII 2PC HDR DRRA SHRD, ROHS

Powell:
.100 inch AMPMODU 2 Piece

Online Components:
20 MODII 2PC HDR DRRA SHRD, ROHS

Electro Sonic:
20 MODII 2PC HDR DRRA SHRD, ROHS
