6278348-7概述

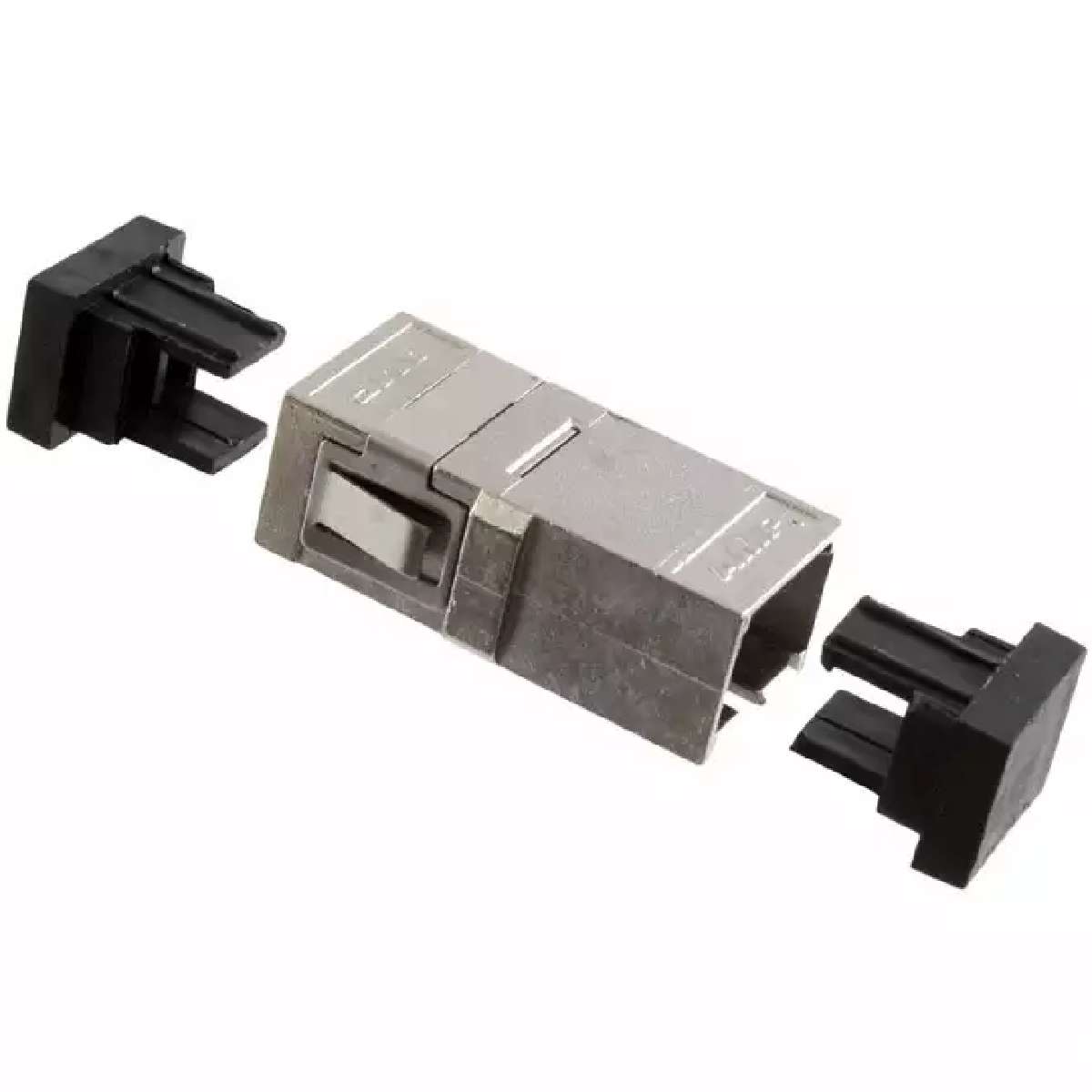

SM Micron 多模 / 单模 耦合插座

耦合器 光纤 SC 插座 至 SC 插座 面板安装,法兰(2 孔)


得捷:
CONN COUPLER RCPT SC-SC SIMPLEX


艾睿:
The sc coupler 6278348-7 fiber optic connector from TE Connectivity can help you extend the reach of your fiber optic line. It has a receptacle type gender. It has a straight body orientation. 6278348-7 is housed in zinc die cast. This fiber optic connector has an operating temperature of -40 to 85 °C. This product is 27.75 mm long, 9.4 mm tall and 22.35 mm deep.


富昌:
单工 自然色 SM Micron 多模 / 单模 耦合插座


Powell:
SC Connectors


6278348-7中文资料参数规格
技术参数

工作温度Max 85 ℃

工作温度Min -40 ℃

封装参数

安装方式 Panel, Snap-In, Flange

封装 Metal

外形尺寸

高度 9.4 mm

封装 Metal

物理参数

外壳颜色 Natural

颜色 Silver

外壳材质 Zinc Die-Cast

其他

产品生命周期 Active

包装方式 Carton

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

数据手册

在线购买6278348-7
型号: 6278348-7
描述:SM Micron 多模 / 单模 耦合插座
