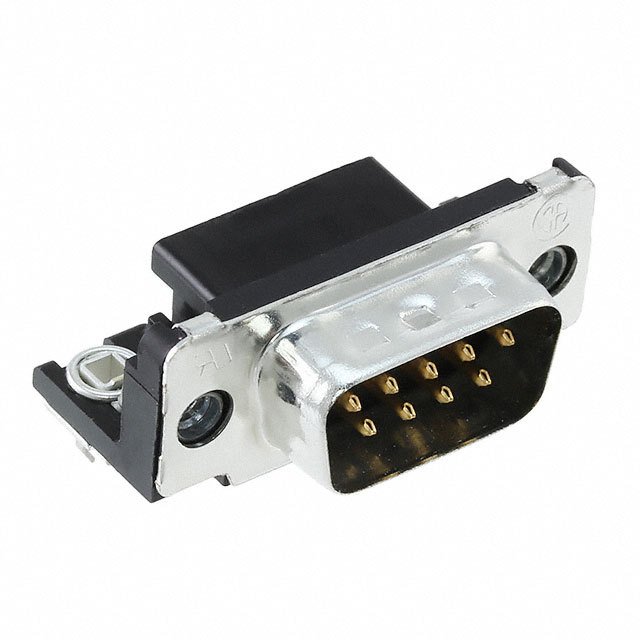

6-747840-9

HD20 系列 9 位置 直角 插头 板安装 D-Sub

9P RA MSFL 318 PLUG

Product Highlights

Number of Positions = 9

Plug

PCB Mount Angle = Right Angle

Product Series = HD 20

With Mating Connector Lock

得捷:
CONN D-SUB PLUG 9POS R/A SLDR

艾睿:
Make the most secure connections between serial ports using the 6-747840-9 DVI connector from TE Connectivity. This 2-row connector has a single port. It has a right angle body orientation. Its pitch is 2.74 mm. 6-747840-9 is housed in nylon|polyester. The item will be shipped in tray orientation. Its 9 terminals use the solder termination method. This product is 30.81 mm long, 12.55 mm tall and 18.62 mm deep.

安富利:
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port

Chip1Stop:
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port

Verical:
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Tray

MASTER:
PLUG ASSEMBLY, SIZE 1, 9 POSITION, RIGHT ANGLE, FRONT METAL SHELL, .318 SERIES, BOARDLOCKS, AMPLIMITE HD-20

Powell:
Standard Board Mount Connectors

Online Components:
9P RA MSFL 318 PLUG

Electro Sonic:
9P RA MSFL 318 PLUG
