AMP FROM TE CONNECTIVITY 66504-4 D-SUB连接器, D Sub Connectors, 母, 磷青铜, 镀金触芯, 20 AWG, 24 AWG

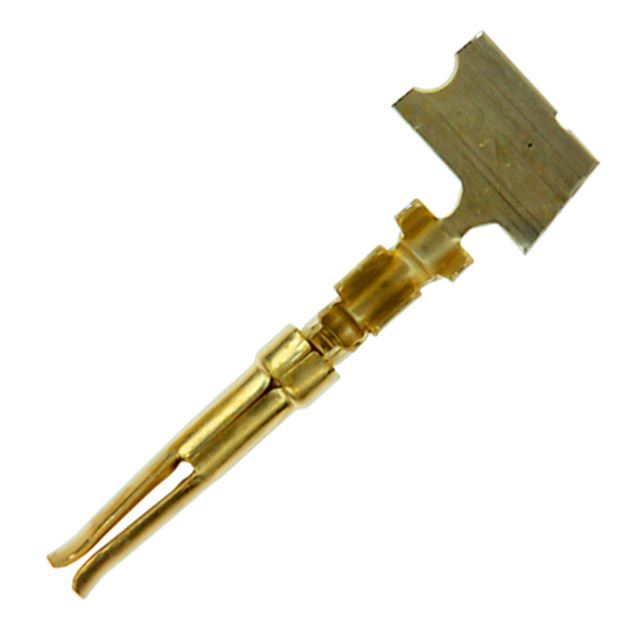

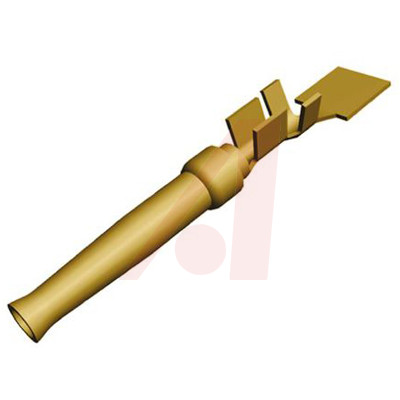

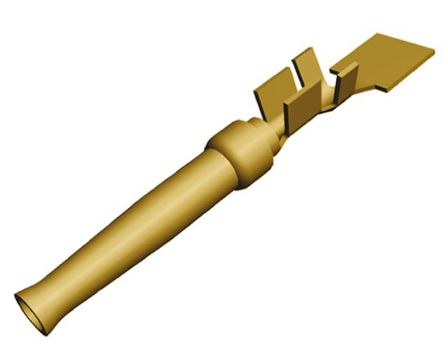

AMPLIMITE D-Sub HDP - 20 系列 20 DF 压接咬合触点
一系列 HDP-20 尺寸 20 DF 精密成型压接扣入式触点,适合与 AMPLIMITE d-sub 连接器系统一起使用。 触点使用压接工具(库存号 446-816)和插入/拔出工具(库存号 446-822)。
电镀接触面积 | 0.8μm 镀金
---|---
触点电阻 | 15mΩ(最大值)
触点材料 | 铜合金
额定电流 | 6A 插头,3A 插座
额定温度 | \- 55°C 至 +105°C
接合次数 | 100
得捷:
CONN SOCKET 20-24AWG GOLD CRIMP
立创商城:
端子
欧时:
TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点 66504-4
贸泽:
D-Sub Contacts CRIMP SOCKET 24-20 Reel of 10000
e络盟:
D Sub适配器, D-Sub连接器, 母, 磷青铜, 镀金触芯, 20 AWG, 24 AWG
艾睿:
Need a strong connection for your wires? This 66504-4 connector contact from TE Connectivity is the most traditional form of connections binding. It has a socket type gender. It has a straight body orientation. This has a Connector D-Subminiature connector. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its wire is 20-24 AWG. This product is 14.1 mm long and 2.67 mm. It uses the crimp termination method.
Allied Electronics:
CONTACT; SOCKET; HDP-20; PLATED; CRIMP; 1.27-1.52 MM
安富利:
Contact SKT Crimp ST Cable Mount Strip
Chip1Stop:
Contact SKT 20 Size Crimp ST Cable Mount 20-24AWG Reel Automotive
Verical:
Contact SKT 20 Size Crimp ST Cable Mount 20-24AWG Reel
MASTER:
Socket Contact Gold Crimp 20-24 AWG Stamped
Powell:
Standard Cable Connectors
Online Components:
HD 20 DF SOCKET PLTD
ICbanQ:
CONN SOCKET 20-24AWG GOLD CRIMP
Electro Sonic:
Socket Contact Gold Crimp 20-24 AWG Stamped
Win Source:
CONN SOCKET 20-24AWG GOLD CRIMP / Socket Contact Gold Crimp 20-24 AWG Stamped
触点数 1
极性 Female
线规 20AWG ~ 24AWG
触点电镀 Gold Flash
额定电流Max 2 A
工作温度Max 105 ℃
工作温度Min -55 ℃
接触电阻Max 15 mΩ
封装 -
长度 14.1 mm
宽度 2.67 mm
封装 -
颜色 Red
触点材质 Phosphor Bronze
材质 Phosphor Bronze
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, Industrial, Commercial, Signal, 军用与航空, Aerospace, Defence, Military, 国防, 商业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8538908040
