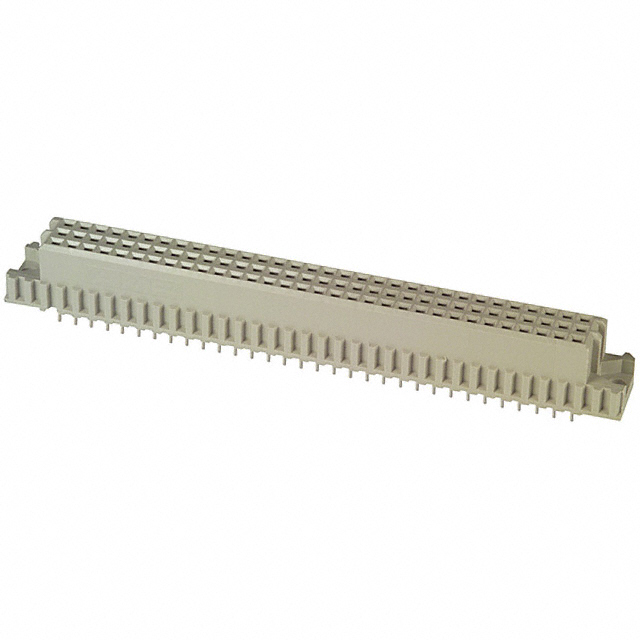

650408-5

Conn DIN 41612 RCP 64POS 2.54mm Solder ST Thru-Hole

064 EURO TYPE C RECEPT ST ASSY

Product Highlights

Type C Connectors

Receptacle

Number of Positions = 64

Rows Loaded = A, C

Terminate To Printed Circuit Board

得捷:
CONN DIN RCPT 96POS PCB GOLD

立创商城:
650408-5

艾睿:
TE Connectivity&s;s din 41612 650408-5 backplane connector will transfer signals at a faster rate than other connector types. This RCP connector&s;s 64 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. It has a receptacle type gender. This device has a maximum current rating of 1.5 A/contact. 650408-5 is housed in gray polyester. It uses the solder termination method. This product is 94 mm long, 11.51 mm tall and 10.59 mm deep. This backplane connector has an operating temperature of -55 to 125 °C.

安富利:
Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Box

Newark:
# AMP - TE CONNECTIVITY  650408-5  DIN 41612 Connector, 64 Contacts, Receptacle, 2.54 mm, 3 Row, a + c

MASTER:
EUROCARD, RECEPTACLE ASSEMBLY, TYPC C

Powell:
Eurocard Type C

Electro Sonic:
064 EURO TYPE C RECEPT ST ASSY
