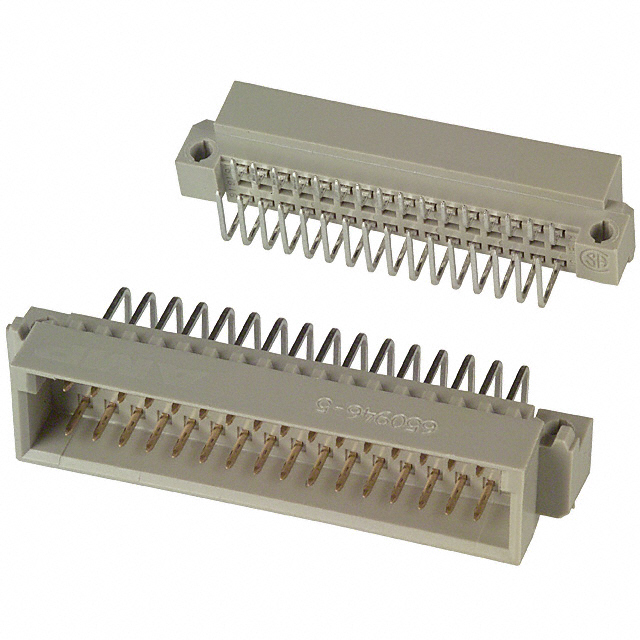

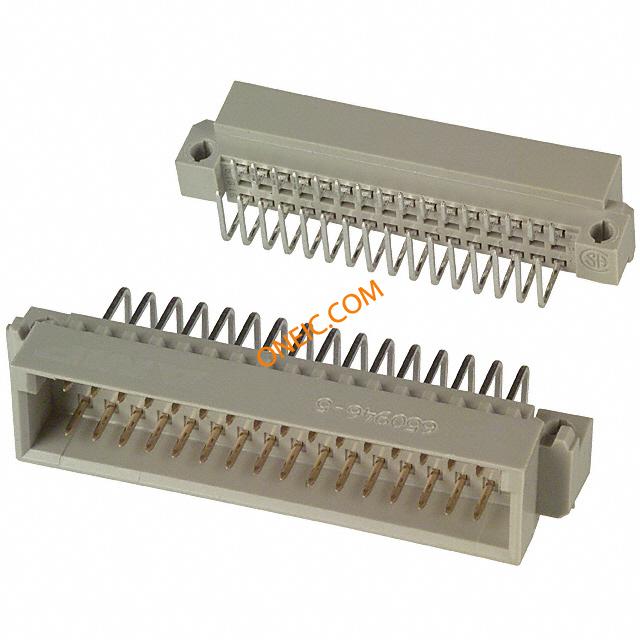

650946-5

Conn DIN 41612 PL 32POS 2.54mm Solder RA Thru-Hole

48 针位 DIN 插头，公引脚 镀金 通孔，直角

得捷:
CONN DIN PLUG 48POS PCB RA GOLD

艾睿:
Solder this din 41612 650946-5 backplane connector from TE Connectivity directly onto a PCB to more easily link multiple connectors together. This PL connector&s;s 32 contacts that are made out of brass and plated with gold over nickel. It has a plug type gender. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. This is a 2-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 1.5 A/contact. This backplane connector has an operating temperature of -55 to 125 °C. 650946-5 is housed in gray polyester. This product is 53.34 mm long, 11.1 mm tall and 17.73 mm deep. It uses the solder termination method.

Allied Electronics:
032 EURO TYPE C PIN ST ASSY

安富利:
Conn DIN 41612 PL 32 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn DIN 41612 PL 32 POS 2.54mm Solder RA Thru-Hole Box

MASTER:
ASSEMBLY, PIN EUROCARD, TYPE C, .104 SOLDER POST

Powell:
Eurocard Type C

Online Components:
032 EURO TYPE C PIN ST ASSY

Electro Sonic:
032 EURO TYPE C PIN ST ASSY
