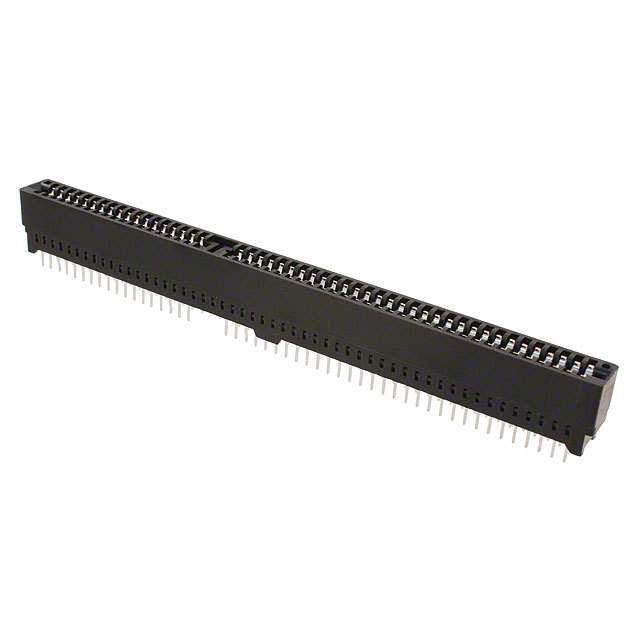

2.54 mm 52 双位 通孔 标准边沿 II 卡沿式和电源连接器
Conn Card Edge SKT 104 POS 2.54mm Solder ST Thru-Hole
Product Highlights
Connector
Product Series = Standard Edge II
Connector Type = Special 18/31 Dual Combination
2.54 mm Centerline
52 Dual Positions
Search Keywords:
card edge, board to board, standard edge, board to board power, bifurcated cantilever beam contacts, Instrument Society of America, backplane/midplane, pcb connectors, one piece, SEC II, power connector
得捷:
CONN CARDEDGE FEMALE 98POS 0.100
贸泽:
Standard Card Edge Connectors CON 49POS 100 C/L
艾睿:
Conn Card Edge SKT 104 POS 2.54mm Solder ST Thru-Hole
安富利:
Conn Card Edge SKT 104 POS 2.54mm Solder ST Thru-Hole
富昌:
2.54mm 52 Dual Position Through Hole Standard EdgeII Card Edge & Power Connector
Chip1Stop:
Conn Card Edge SKT 104 POS 2.54mm Solder ST Thru-Hole
Verical:
Conn Card Edge SKT 104 POS 2.54mm Solder ST Thru-Hole
MASTER:
Conn Card Edge SKT 104 POS 2.54mm Solder ST Thru-Hole
Online Components:
Conn Card Edge SKT 104 POS 2.54mm Solder ST Thru-Hole
Electro Sonic:
Conn Card Edge SKT 104 POS 2.54mm Solder ST Thru-Hole
触点数 104
极性 Male
触点电镀 Gold, Tin
额定电流 3.00 A
绝缘电阻 5.00 GΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 49
额定电流Max 3A/触头
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 1000 VAC
接触电阻Max 10 mΩ
安装方式 Through Hole
封装 100
引脚间距 2.54 mm
长度 138.68 mm
宽度 9.35 mm
高度 15.49 mm
封装 100
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
外壳材质 Polyester
产品生命周期 Superseded
包装方式 Tray
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
