6-535541-2

AMPMODU 14 位置 单排 2.54 mm 间距 垂直 MOD IV 插座

14 MODIV VRT SR CE 100/115

Product Highlights

Connector

Housing Gender = Connector - Receptacle

Contact Gender = Receptacle

Mod IV

14 Positions

得捷:
CONN RCPT 14POS 0.1 GOLD PCB

贸泽:
集管和线壳 REC 1X14P VRT T/H

艾睿:

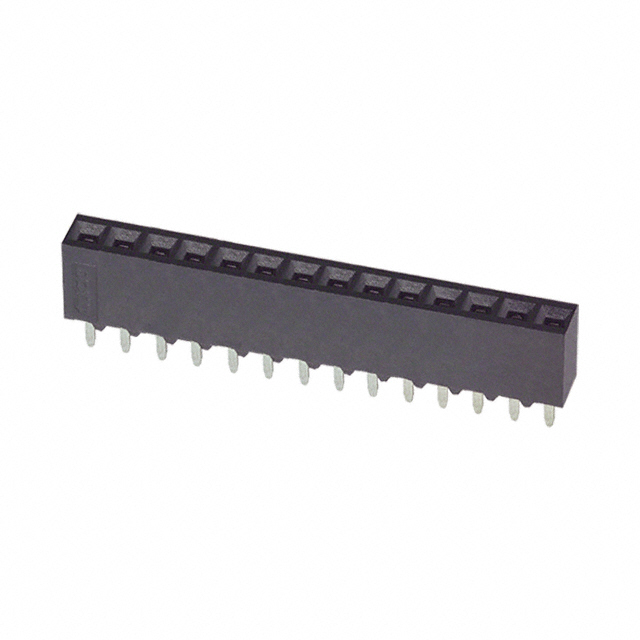

Look no further than the socket strip 6-535541-2 header connector from TE Connectivity, a great tool to use when board-to-board interconnects is required. This RCP connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This is a 1-row connector. It has a receptacle type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 2 A/contact. It uses the solder termination method. 6-535541-2 is housed in black polychlorinated terphenyl. This connector has an operating temperature of -65 to 105 °C. This product is 35.56 mm long, 6.73 mm tall and 3.56 mm deep.

Jameco:
Connector Socket Strip Receptacle 14 Position 2.54mm Solder Straight Through Hole Gang Of Tubes

安富利:
Conn Socket Strip RCP 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes

Verical:
Conn Socket Strip RCP 14 POS 2.54mm Solder ST Thru-Hole Box/Tube

Newark:
# AMP - TE CONNECTIVITY  6-535541-2  14 MODIV VRT SR CE 100/115 New

MASTER:
RECPT.ASSY, MOD IV, SINGLE ROW, .100CL, VERTICAL BOARD MOUNT, CLOSED, TOP ENTRY, SHORT PNT. OF CONTACT

Powell:
.100 inch AMPMODU Receptacles

Online Components:
14 MODIV VRT SR CE 100/115

Electro Sonic:
14 MODIV VRT SR CE 100/115
