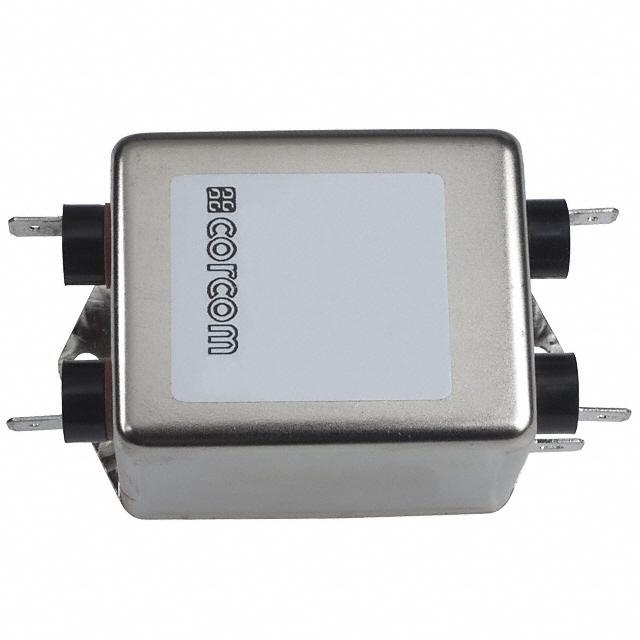

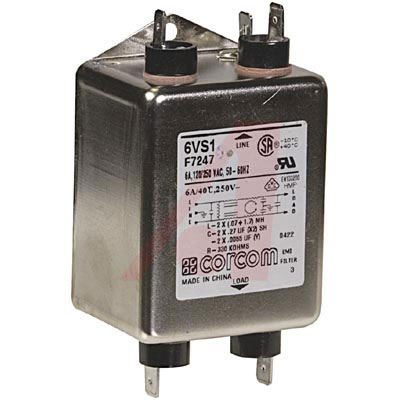

CORCOM - TE CONNECTIVITY 6VS1 Power Line Filter, Chassis, 0.543µF, 250VAC, 6A, EMI, RFI, Quick Connect, 1.8mH
单相 EMC/EMI 线路 120V，250VAC 50/60Hz 两级 快速连接
欧时:
Power Line Filter 120/250V 6A S series 1
艾睿:
Power Line Filter Multi-Purpose RFI 50Hz/60Hz 6A 250VAC Quick Connect Flange Mount
Allied Electronics:
Filter, RFI; 6 A; 2250 VDC Line-to-Ground, 1450 VDC Line-to-Line; S Series
安富利:
Power Line Filter 50Hz/60Hz 6A 250VAC Quick Connect Flange Mount
Chip1Stop:
Power Line Filter Multi-Purpose RFI 50Hz/60Hz 6A 250VAC Quick Connect Flange Mount
Verical:
Power Line Filter Multi-Purpose RFI 50Hz/60Hz 6A 250VAC Quick Connect Flange Mount
MASTER:
Power Line Filter Multi-Purpose RFI 50Hz/60Hz 6A 250VAC Quick Connect Flange Mount
Powell:
Power Line Filters 6A 1/4" QUIK CONN
频率 60.0 Hz
额定电压DC 250 V
额定电压AC 120V, 250V
工作电压 250 VAC
额定电流 6 A
电容 0.543 µF
电感 1.8 mH
额定电流Max 6 A
工作温度Max 40 ℃
工作温度Min -10 ℃
额定电压Max 250 VAC
额定电压 250 VAC
安装方式 Flange

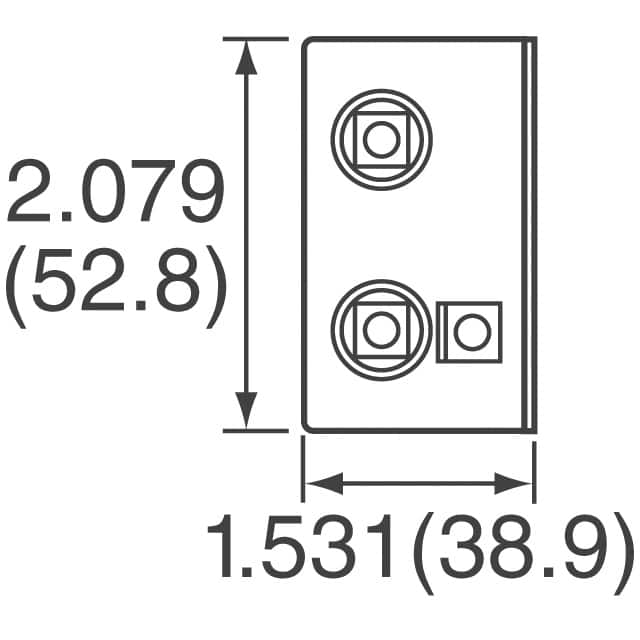

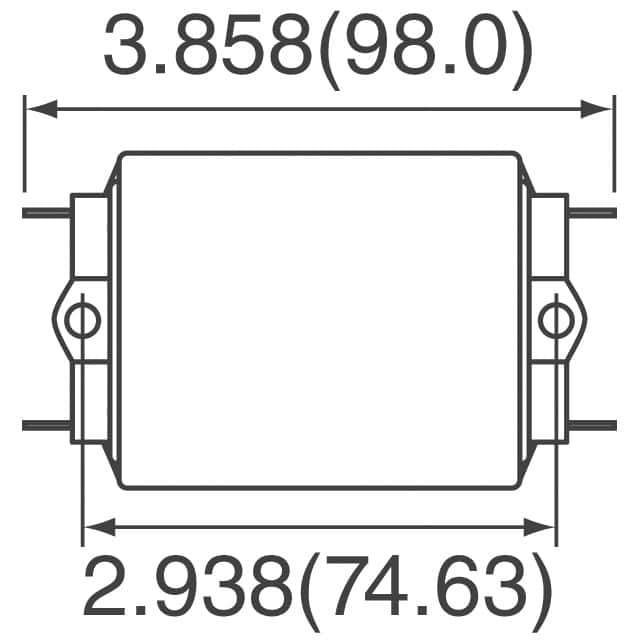

长度 98 mm
宽度 52.8 mm
高度 38.9 mm
工作温度 -10℃ ~ 40℃
产品生命周期 Active
包装方式 Bulk
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8548900100
