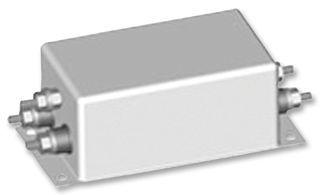

60VS6

电源线滤波器 60A CHASSIS MOUNT

The S Series filters will protect equipment from malfunctions due to conducted interference coming into the equipment from the line, especially line-to-line noise and transients. In addition, they combine line-to-ground interference rejection filters with additional circuitry to reduce line-to-line transients. They are also effective in controlling emissions in equipment using SCR and T2L circuits, for compliance with FCC Part 15, Subpart J and VDE 0871, Level A, down 150 kHz. The S Series is an N=2 line-to-ground impedance common mode and an N=3 impedance for line-to-line differential mode interference. The suppression allows most equipment, including switchmode power supplies, to meet FCC specifications for conducted emissions. Additional max. line amps available as special order items.

.

*Maximum Leakage Current** **Line-to-Ground**: 0.4 mA @ 120 VAC, 60 Hz; 0.7 mA @ 250 VAC, 50 Hz. **Hipot Rating** 1 minute: **Line-to-Ground** — 2250 VDC; **Line-to-Line** — 1450 VDC. **Operating Frequency**: 50/60 Hz. **Maximum Rated Voltage**: 250 VAC.
