61PC5F

61PC5F图片1
61PC5F图片2
61PC5F图片3
61PC5F图片4
61PC5F图片5
61PC5F图片6
61PC5F概述

Conn Circular DIN F 5POS Solder RA Thru-Hole 5 Terminal 1Port

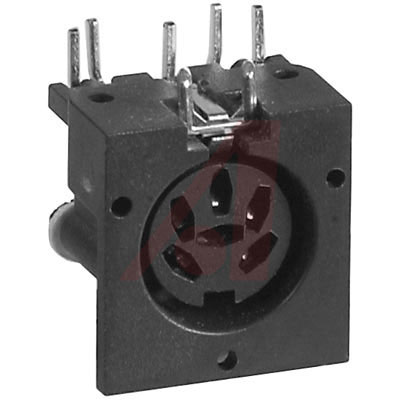

Right-Angle DIN Receptacle Connector

DIN is the name given to this high-quality family of versatile miniature audio connectors. Features include solder lug or PC terminations, as well as bright nickel-plated or colorful plastic snap-on shells. Designed for audio circuitry, they are also ideal for test equipment, computers and other types of low level circuits. Precision manufactured. The parts listed are a small representation of a large and growing family. Call the closest sales office for parts not shown.

The right-angle receptacle for printed circuit board mounting.

61PC5F中文资料参数规格
技术参数

触点数 5

极性 Female

额定电流 3 A

针脚数 5

额定电压 34 VDC

封装参数

安装方式 Through Hole

外形尺寸

高度 21 mm

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买61PC5F
型号: 61PC5F
制造商: Switchcraft / Conxall
描述:Conn Circular DIN F 5POS Solder RA Thru-Hole 5 Terminal 1Port
