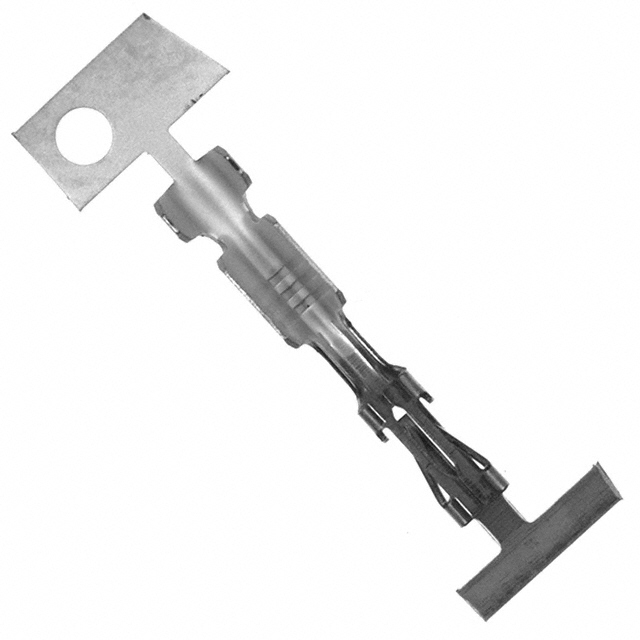

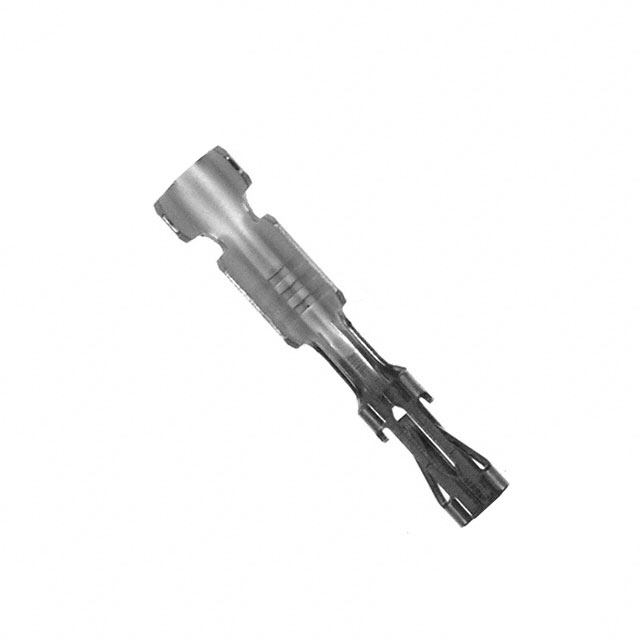

AMP FROM TE CONNECTIVITY 6-87523-8 金属触芯, 母, 24-20AWG, 压接
MOD IV RECP PLTD 30 DPLX
Product Highlights
Receptacle Contact
Wire Termination Type = Crimp
Terminate To Wire
Wire Insulation Diameter = 1.75 mm
Wire Range = 0.20-0.60² [24-20] mm [AWG]
得捷:
CONN SOCKET 20-24AWG CRIMP GOLD
e络盟:
触芯, 连接器, 母, 24-20AWG, 压接
艾睿:
This 6-87523-8 connector contact from TE Connectivity is designed to perform within the rated voltage and current specifications to provide a solid connection. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 3 A. This has a Connector Headers and PCB Receptacles connector. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 12.09 mm long, 2.03 mm tall and 2.41 mm deep. It uses the crimp termination method. Its wire is 20-24 AWG. This connector contact has a minimum operating temperature of -65 °C and a maximum of 105 °C.
安富利:
Contact SKT Crimp ST Cable Mount Reel
富昌:
AMPMODU 模压 IV 24-20 AWG 线/电缆 绝缘支持 压接 扣接 插座
Chip1Stop:
Contact SKT Crimp ST Cable Mount T/R
Verical:
Contact SKT Crimp ST Cable Mount 20-24AWG T/R
Newark:
# AMP - TE CONNECTIVITY 6-87523-8 Contact, AMPMODU Mod IV Series, Socket, Crimp, 20 AWG, Gold Plated Contacts
MASTER:
MOD IV RECP PLTD 30 DPLX
Powell:
.100 AMPMODU Headers, Housings & Contacts
Online Components:
MOD IV RECP PLTD 30 DPLX
Electro Sonic:
MOD IV RECP PLTD 30 DPLX
触点数 1
极性 Female
线规 20AWG ~ 24AWG
触点电镀 Gold
额定电压AC 250 V
额定电流 3.00 A
绝缘电阻 5.00 GΩ
接触电阻 12 mΩ
触点额定电流 3.00 A
额定电流Max 3 A
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
接触电阻Max 12 mΩ
长度 12.09 mm
宽度 2.41 mm
高度 2.03 mm
触点材质 Copper Alloy
工作温度 -65℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538908040
