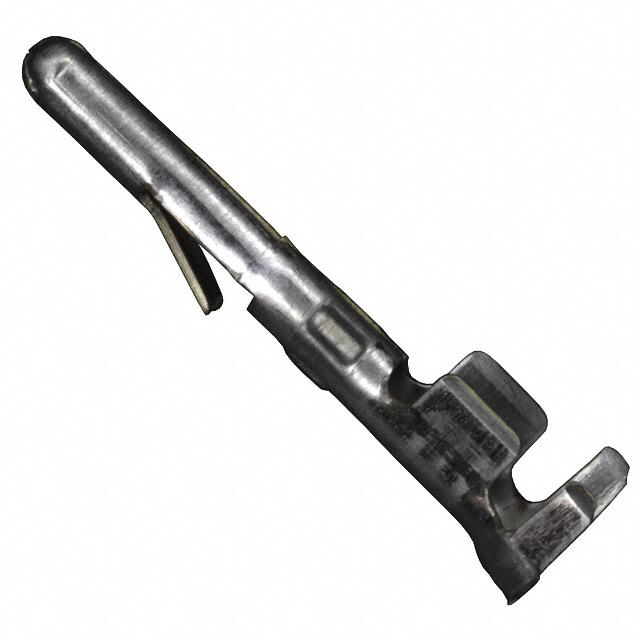

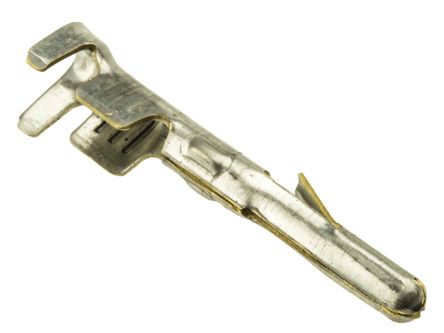

Mate-N-Lok 预镀锡 20-14 AWG 插座 接触端子
商业 MATE-N-LOK 引脚和插座触点
一系列引脚和插座压接触点,适用于商业 MATE-N-LOK 2.54mm 连接器外壳。 这些引脚和插座触点,具有锁定片,确保牢固,提供预镀锡或镀金镀层及各种电线尺寸范围。
### 注
仅适用于商用 Mate-N-Lok 外壳
欧时:
TE Connectivity Commercial MATE-N-LOK 系列 公 压接接线端子 60620-1, 镀锡 黄铜触芯, 20AWG 至 14AWG
得捷:
CONN PIN 14-20AWG CRIMP TIN
立创商城:
端子
贸泽:
Pin & Socket Connectors PIN 20-14 AWG
e络盟:
AMP FROM TE CONNECTIVITY 60620-1 压接针脚触点
艾睿:
Easily improve a secured connection with this specially engineered 60620-1 connector contact from TE Connectivity. It has a straight body orientation. This device has a maximum current rating of 15 A. This has a Connector Headers and PCB Receptacles connector. This connector contact has a minimum operating temperature of -55 °C and a maximum of 105 °C. It uses the crimp termination method. This product is 20.44 mm long, 4.82 mm tall and 4.44 mm deep. Its wire is 14-20 AWG.
Allied Electronics:
Contact, Pin, MATE-N-LOK, 20-14 AWG, Brass
安富利:
Contact PIN Crimp ST Cable Mount Loose Piece
Chip1Stop:
Contact PIN Crimp ST Cable Mount Automotive Bag
Verical:
Contact PIN Crimp ST Cable Mount Automotive Bag
Newark:
# AMP - TE CONNECTIVITY 60620-1 Contact, Commercial MATE-N-LOK Series, Pin, Crimp, 14 AWG, Tin Plated Contacts
MASTER:
This loose piece pin contact from TE comes from their Commercial MATE-N-LOK Connectors series and is intended for use with loose piece socket contact part number 60619-1. The pin is made from brass with a pre-tin finish and can accept wire sizes ranging f
Powell:
.200" Centerline, 250 V, 13 A max.
ICbanQ:
Rectangular Power Connectors PIN 20-14 AWG
GOPHER:
Soft Shell Connector CONTACT PIN 20-14AWG TIN PLT BRASS UNIVERSAL MATE-N-LOCK CONNECTORS
Electro Sonic:
This loose piece pin contact from TE comes from their Commercial MATE-N-LOK Connectors series and is intended for use with ...
触点数 1
极性 Male
线规 14AWG ~ 20AWG
触点电镀 Tin
额定电压AC 250 V
额定电流 13 A
易燃性等级 UL 94 V-2
额定电流Max 15 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 250 V
封装 -

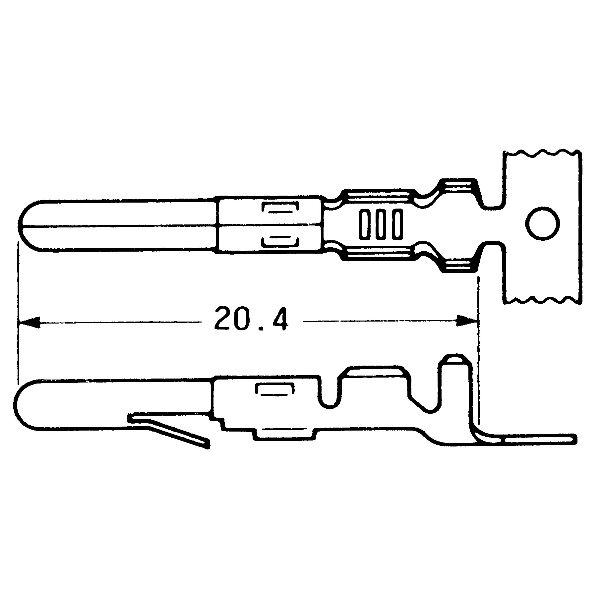

长度 20.44 mm
宽度 4.44 mm
高度 4.82 mm
封装 -
触点材质 Brass
材质 Brass
产品生命周期 Active
包装方式 Bulk
制造应用 Power, 商业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536904000
