6EP1331-1SH03

SIEMENS  6EP1331-1SH03  交流/直流电源, DIN轨, LOGO!, 固定输出, 85 V, 264 V, 30 W, 24 V, 1.3 A

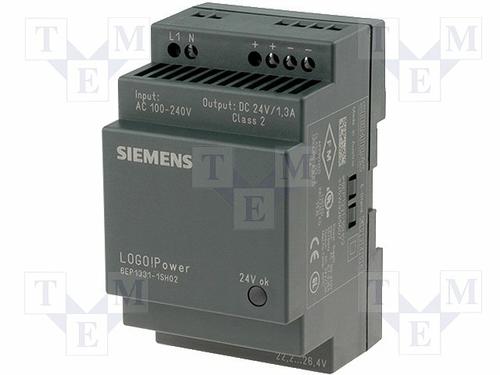

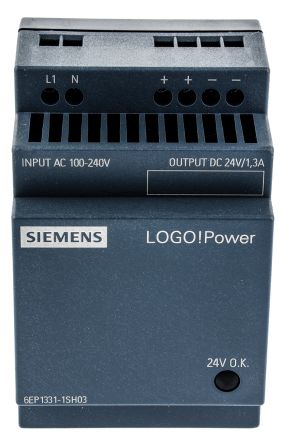

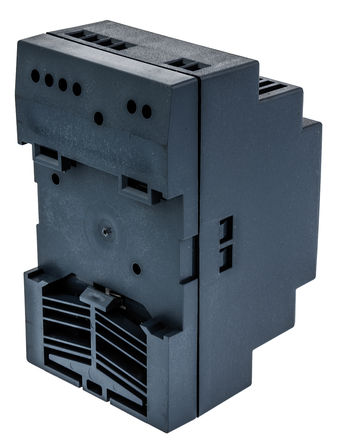

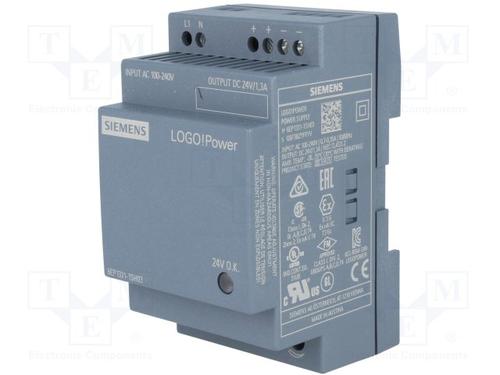

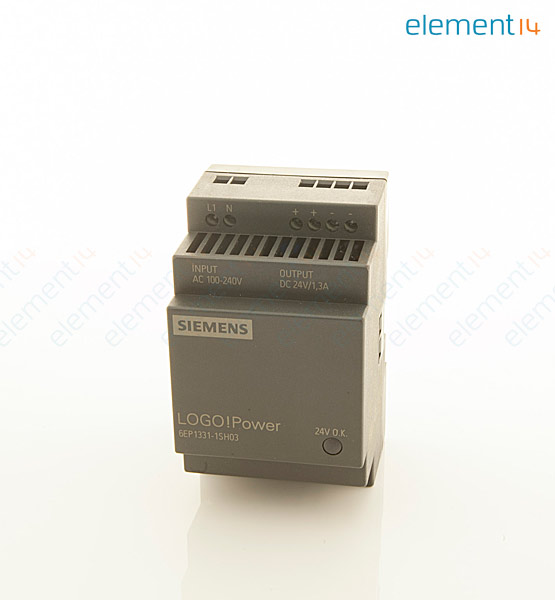

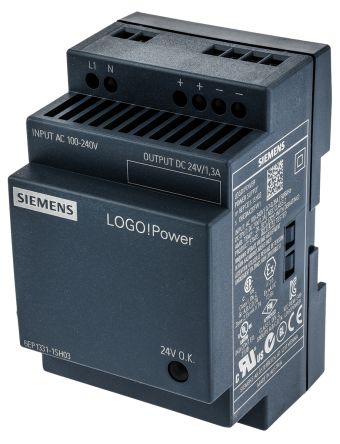

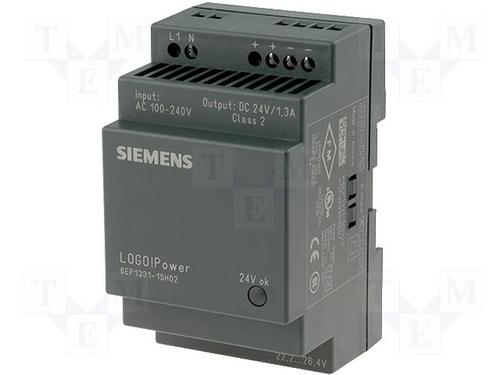

The from Siemens is a LOGO!Power miniature stabilized power supply. It is a single phase with 24V/ 1.3A output flat power supply in LOGO! 8 design. This design offer great performance in the smallest space. They are suitable for highly versatile implementation in numerous applications in the lower performance range. The excellent efficiency over the complete load range and the low power loss during idle times guarantee efficient operation. The excellent efficiency over the complete load range and the low power loss during idle times guarantee efficient operation. This reliable power supply with their flat, stepped profile is extremely suitable for applications with low mounting depths.

.

Input supply range from 85VAC to 264VAC or 110VDC to 300VDC

.

Efficiency is 85%

.

Temperature range from -20°C to +70°C

.

CE, cULus, CB Scheme, FM, ATEX, SEMI F47, NEC Class 2, cCSAus, GL, ABS, DNV, BV, LRS standards

.

Temperature range from -20°C to 70°C

.

Adjustable output voltage

.

Green LED for "Output voltage OK"

.

Constant current for connection of loads with high inrush current

.

Power reserve on starting up through 1.5 times rated current for capacitive loads
