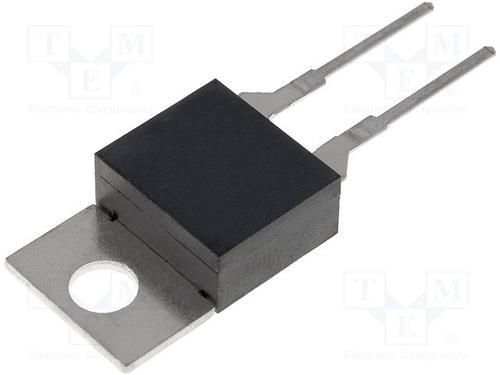

AIRPAX 67F070 热开关, 常开, 70°C
恒温器 158°F（70°C） SPST-NO TO-220-2 PC 引脚
得捷:
THERMOSTAT 70DEG C NO TO220-2
e络盟:
恒温开关, 超小型, 双金属片, 6700系列, 70 °C, 常开, TO-220
艾睿:
Bimetal Disc Thermostat Automotive 2-Pin2+Tab TO-220
TME:
Sensor: thermostat; Output conf: NO; Topen:50°C; Tclos:70°C; 1A
Verical:
Bimetal Disc Thermostat Close on Rise Automotive 2-Pin2+Tab TO-220
Newark:
# AIRPAX 67F070 Themostat, Subminiature, Bimetal Disc, 6700 Series, 70 °C, Normally Open, TO-220
MASTER:
Bimetal Disc Thermostat Automotive 2-Pin2+Tab TO-220
Online Components:
Bimetal Disc Thermostat Automotive 2-Pin2+Tab TO-220
Win Source:
THERMOSTAT 70 DEG NO TO-220
DeviceMart:
THERMOSTAT 70 DEG NO TO-220
Electro Sonic:
Bimetal Disc Thermostat Automotive 2-Pin2+Tab TO-220
触点类型 SPST-NO
额定电流Max 1 A
额定电流DC 0.5A @48V
工作温度Max 130 ℃
工作温度Min 40 ℃
额定电压DC Max 48 V
额定电压AC Max 120 V
接触电阻Max 50 mΩ
安装方式 Through Hole
引脚数 2
封装 TO-220-2
封装 TO-220-2
颜色 Black
工作温度 40℃ ~ 130℃
产品生命周期 Active
制造应用 Avionics, 医用, 车用, Medical, Automotive, 计算机和计算机周边, Computers & Computer Peripherals, 航空电子
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536200020
