6300T75

6300T 系列 黄色/绿色 50° 18 mcd 漫射式 2.5 V 表面贴装 电路板指示灯

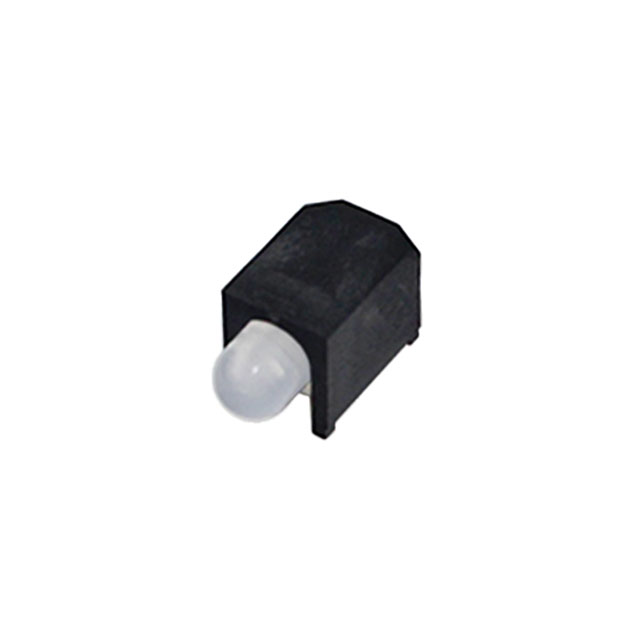

The from is a 6300T series 3mm T-1 single level surface mount right angled circuit board indicator. This indicator has yellow/green emitting colour and diffused lens type. The yellow indicator is made of GaAsP/GaP material and super bright green is made of GaP material, the 6300T series is suitable for automated environments.

.

0.112" 2.85mm LED bulb size, 50° viewing angle

.

Peak wavelength for yellow/green is 590nm/565nm, dominant wavelength for yellow/green is 588nm/568nm

.

20PF for yellow, 15pF for green capacitance typ, 2.5V max forward voltage at IF = 10mA

.

Maximum reverse current is 10µA, luminous intensity for yellow/green is 6mcd/9mcd

.

Power dissipation is 75mW for red, power dissipation is 62.5mW for green

.

Operating temperature range from -40°C to +85°C

.

Black case enhances contrast ratio, black housing enhances contrast ratio equipment

.

Housing material meets UL94V-0, lens material meets UL94-HB

.

Compatible with automatic placement equipment

.

Compatible with infrared and vapour phase solder processes
