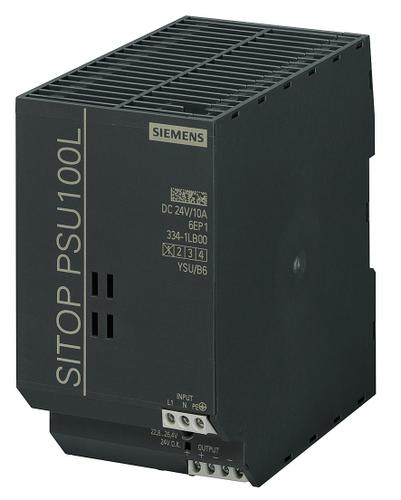

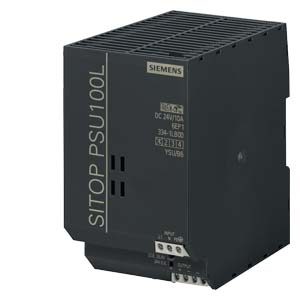

Power Supply; SITOP Lite PSU100L; In 120-230VAC; Out 24VDC 10A; DIN Rail
The SITOP Lite series of power supplies is designed for standard requirements in industrial environments and offers all important functions at a favorable price, of course without compromising quality and the proverbial SITOP reliability. The wide-range input with manual switchover supports connection to a wide range of 1-phase supply systems. Thanks to the narrow width, the switched-mode power supplies require little space on the DIN rail, and the good efficiency results in low thermal losses in the control cabinet. Short-circuit and overload protection as well as UL approval for export ensure problem-free use.
* 120 VAC and 230 VAC Wide-Range Input with Selector Switch on Device
* Narrow Mounting Width
* High Degree of Efficiency
* Green LED for “24 V OK”
* Parallel Connection Possible
* No Lateral Installation Clearances Required
* Cooling Through Natural Convection
* Short-Circuit and Overload Protection
* 0°C to 60°C from 45°C with Derating Ambient Temperature Range
* Certification in Accordance with CE and UL
* High Efficiency of 85% 24 V/2.5 A, 86% 24 V/5 A and 89% 24 V/10 A at Rated Load
* Output Voltage Settable to 26.4 V
