6300T7

电路板指示灯, 黄色, 1 LED灯, SMD, T-1 3mm, 10 mA, 6 mcd

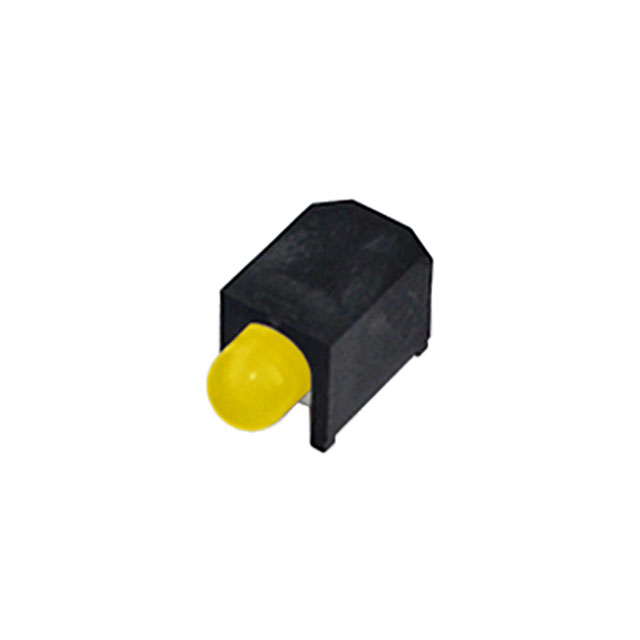

The from is a 6300T series 3mm T-1 single level surface mount right angled circuit board indicator. This yellow colour diffused lens is made of AlGaInP on GaAs substrate, the 6300T series is suitable for automated environments.

.

0.112" 2.85mm LED bulb size, 50° viewing angle

.

Peak wavelength is 590nm, dominant wavelength is 588nm & luminous intensity is 6mcd

.

20pF capacitance typ at VF = 0V, f = 1MHz, 2.5V max forward voltage at IF = 10mA

.

Maximum reverse current is 10µA at VR = 5V

.

Power dissipation is 75mW

.

Operating temperature range from -40°C to +85°C

.

Black case enhances contrast ratio, black housing enhances contrast ratio equipment

.

Housing material meets UL94V-0, lens material meets UL94-HB

.

Compatible with automatic placement equipment

.

Compatible with infrared and vapour phase solder processes
