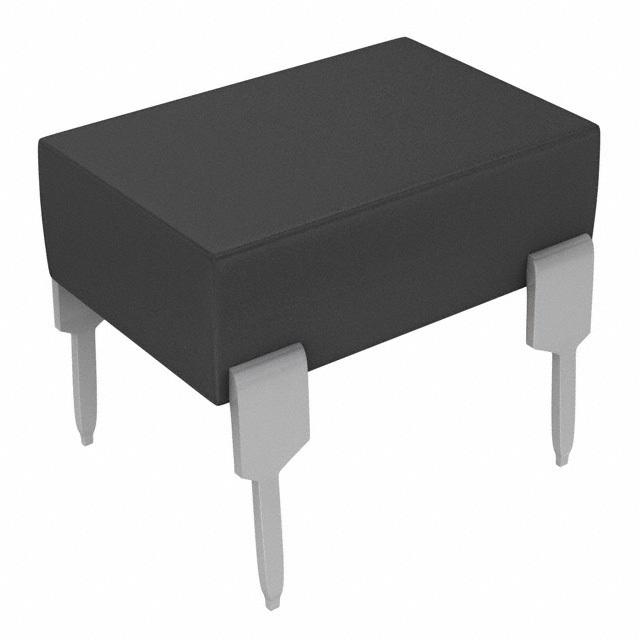

AIRPAX 66F070 热开关, 常开, 70°C
The is a positive snap action SPST Subminiature Bimetal Disc Thermostat provides accurate and reliable sensing and switching in a single device. The Airpax™ 6600 series thermostat is ideally suited for surface and air sensing on printed circuit boards. Its size and shape conserves space on crowded PC boards and can be installed using auto-insertion equipment. The device is sealed to withstand wave soldering and board washing operations.
- .
- Fan close on rise contact operation
- .
- Gold-plated contacts
- .
- Up to 30000 life cycles @ maximum standard amperage 120VAC
- .
- Up to 100000 life cycles @ maximum gold contact amperage
电源电压DC 48.0V max
接触电阻 50.0 mΩ
额定电流Max 1 A
额定电流DC 1A @48V
工作温度Max 120 ℃
工作温度Min 40 ℃
额定电压DC Max 48 V
额定电压AC Max 120 V
接触电阻Max 50 mΩ
电源电压Max 48 VDC
电源电压Min 5 VDC
安装方式 Through Hole
封装 DIP-8
宽度 10.16 mm
高度 3.30 mm
封装 DIP-8
颜色 Black
工作温度 40℃ ~ 130℃
产品生命周期 Active
制造应用 计算机和计算机周边, Test & Measurement, 国防, 军用与航空, 车用, Aerospace, Defence, Military, Computers & Computer Peripherals, Sensing & Instrumentation, 测试与测量, 传感与仪器, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2016/06/20
