AIRPAX 67L090 热开关, 常闭, 90°C
恒温器 194°F（90°C） SPST-NC TO-220-2 PC 引脚
得捷:
THERMOSTAT 90DEG C NC TO220-2
艾睿:
Bimetal Disc Thermostat Automotive 2-Pin2+Tab TO-220
TME:
Sensor: thermostat; Output conf: NC; Topen:90°C; Tclos:60°C; 1A
Newark:
Thermostat Switch, Subminiature, Bimetal Disc, 6700 Series, 90 °C, Normally Closed, TO-220
MASTER:

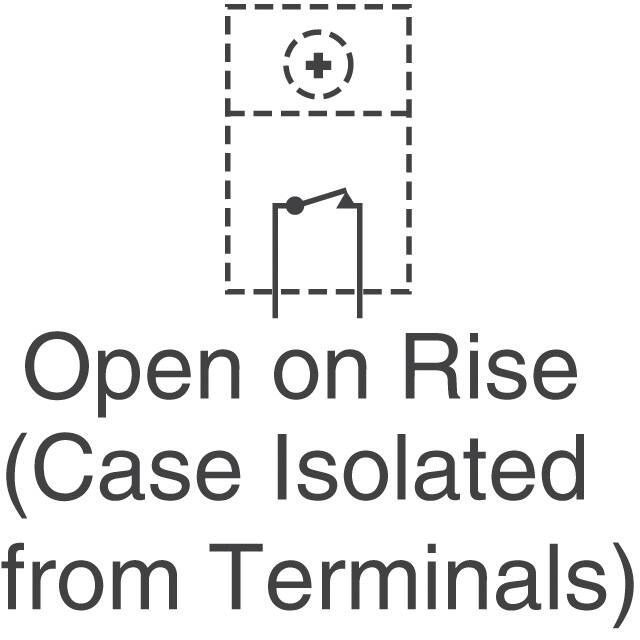

Bimetal Disc Thermostat Open on Rise Automotive 2-Pin2+Tab TO-220
Online Components:
Bimetal Disc Thermostat Automotive 2-Pin2+Tab TO-220
Win Source:
THERMOSTAT 90 DEG NC TO-220
Electro Sonic:
Bimetal Disc Thermostat Open on Rise Automotive 2-Pin2+Tab TO-220
触点类型 SPST-NC
额定电流Max 1 A
额定电流DC 0.5A @48V
工作温度Max 130 ℃
工作温度Min 40 ℃
额定电压DC Max 48 V
额定电压AC Max 120 V
接触电阻Max 50 mΩ
安装方式 Through Hole
引脚数 2
封装 TO-220-2
封装 TO-220-2
颜色 Black
工作温度 40℃ ~ 130℃
产品生命周期 Active
制造应用 Computers & Computer Peripherals, Automotive, Avionics, Medical, 车用, 医用, Avionics, 航空电子, Computers & Computer Peripherals, Automotive, Medical, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
HTS代码 8536200020
