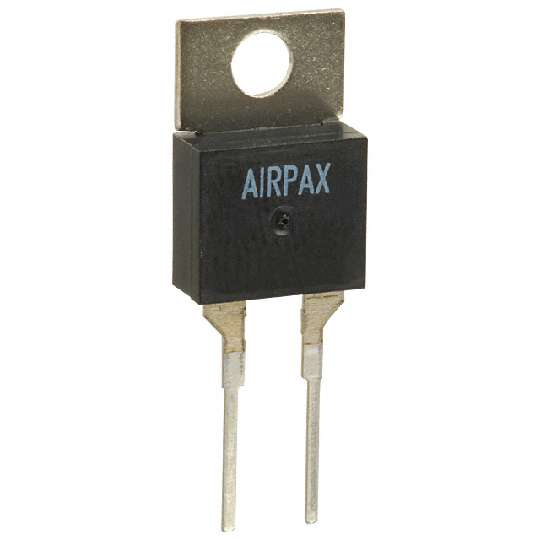

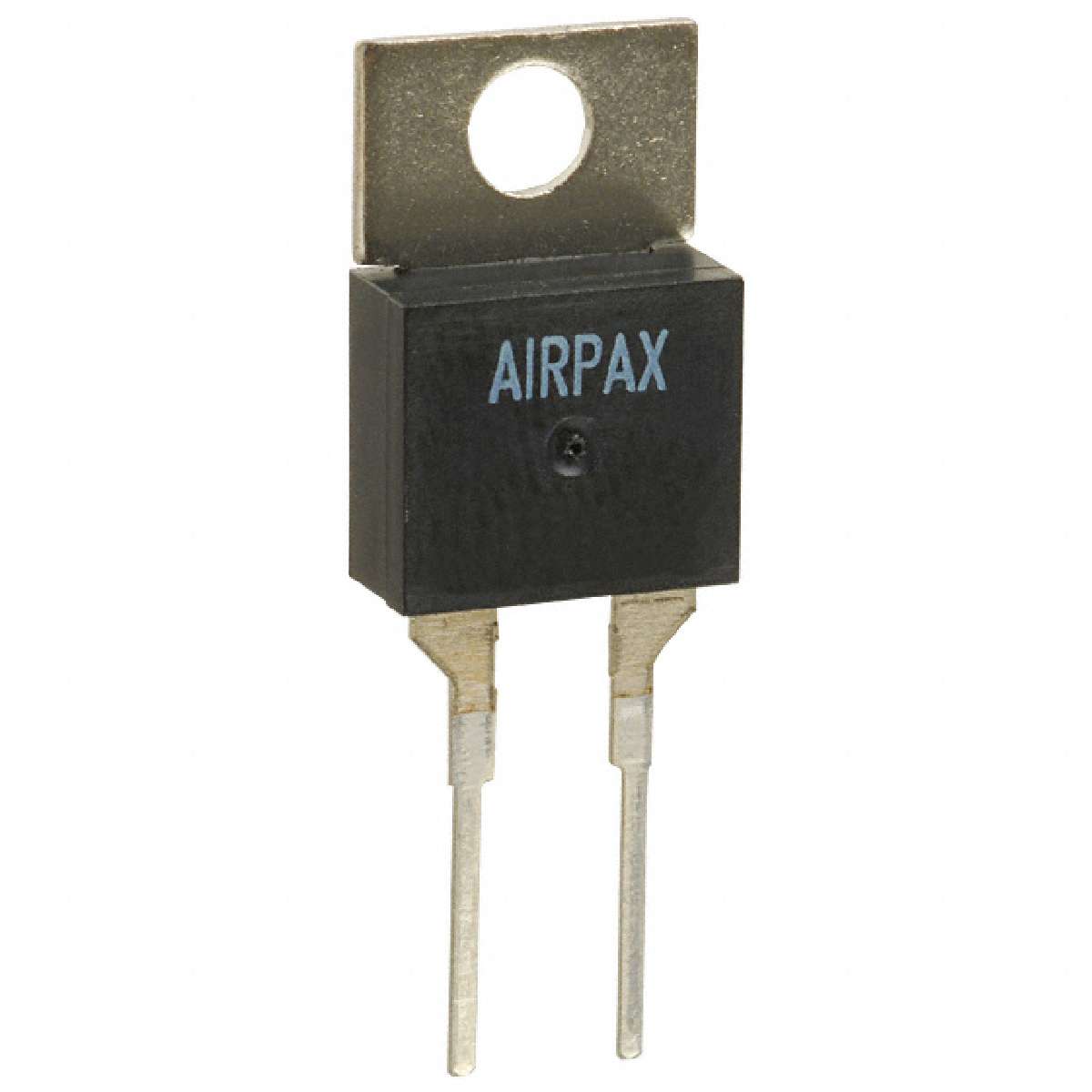

AIRPAX 67L075 恒温控制器, 1A, 48VDC, 75°C, 常关, TO-220
Bimetal Disc Thermostat Automotive 2-Pin2+Tab TO-220
得捷:
THERMOSTAT 75DEG C NC TO220-2
e络盟:
恒温控制器
艾睿:
Bimetal Disc Thermostat Automotive 2-Pin2+Tab TO-220
Verical:
Bimetal Disc Thermostat Open on Rise Automotive 2-Pin2+Tab TO-220
Newark:
# AIRPAX 67L075 Thermostat, Subminiature, Bimetal Disc, 6700 Series, 75 °C, Normally Closed, TO-220
MASTER:
Bimetal Disc Thermostat Open on Rise Automotive 2-Pin2+Tab TO-220
Online Components:
Bimetal Disc Thermostat Automotive 2-Pin2+Tab TO-220
DeviceMart:
THERMOSTAT 75 DEG NC TO-220
Electro Sonic:
Bimetal Disc Thermostat Open on Rise Automotive 2-Pin2+Tab TO-220
触点类型 SPST-NC
额定电流Max 1 A
额定电流DC 0.5A @48V
工作温度Max 130 ℃
工作温度Min 40 ℃
额定电压DC Max 48 V
额定电压AC Max 120 V
接触电阻Max 50 mΩ
安装方式 Through Hole
引脚数 2
封装 TO-220-2
封装 TO-220-2
颜色 Black
工作温度 40℃ ~ 130℃
产品生命周期 Active
制造应用 照明, 测试与测量, 车用, 医用, 航空电子, 电源管理, 传感与仪器, 音频, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
