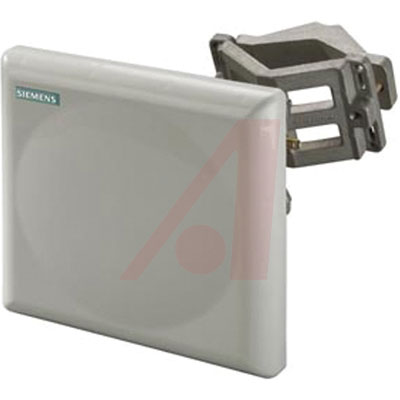

Simatic Net, Iwlan Antenna Ant 793-8dn
Genuine alignment of the wireless field at 5 GHz ANT793-8DN is achieved using this antenna. The wireless field is concentrated in a narrow cone due to the narrow opening angle. High passive gains and long ranges are therefore achieved. Due to the high passive gain, the antenna is ideally suited to bridging large distances over IWLAN.
Allied Electronics:
SIMATIC NET, IWLAN ANTENNA ANT 793-8DN
增益 18 dB
安装方式 Panel
Accessory Type Antenna
Angle, Beam 18/18 °-Horizontal/°-Vertical
Brand/Series 6GK Series
Communication N Female Connector
Connector Type N Female
Dimensions 190 W x 190 H x 30.5 D mm
Frequency Range 5 GHz
Gain 18 dB
Impedance 50 Ohms
Material, Housing Polypropylene
Mounting Type Mast/Panel
Primary Type IWLAN
Protection Class IP65
Protection Rating IP65
Radio Frequency 5 GHz
Special Features Strong Directional Efficiency
Type Antenna
