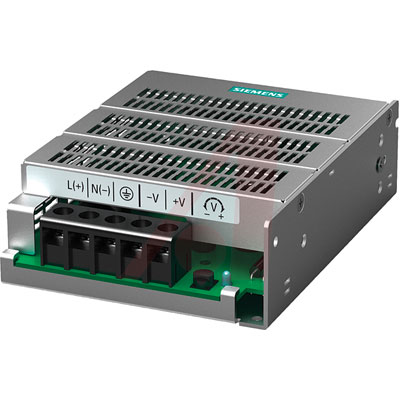

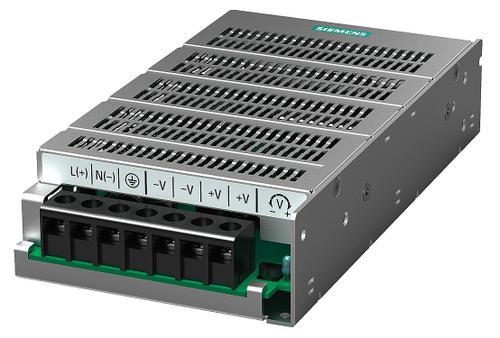

POWER SUPPLY,PSU100D 24V/6.2A,240VAC
The SITOP Direct Mount regulated power supplies can be screwed directly onto the wall. The rugged aluminum enclosure with IP20 degree of protection can be variably mounted in different positions, even in applications with high temperatures and high shock and vibration requirements. The wide-range input enables connectivity to the most diverse supply networks worldwide and ensures reliable 12 V or 24 V supply even if there are large voltage fluctuations.
* 85 to 264 Wide-Range Input
* Different Positions Possible via Screw Mounting
* Green LED “Output Voltage OK”
* Switching in Parallel
* Adjustable Output Voltage
* Stable Aluminum Enclosure
* High Shock and Vibration Resistance for Harsh Environmental Conditions
* Cooling Through Natural Convection
* Short-Circuit and Overload Protection Specifications
* –10°C to +70°C Ambient Temperature Range
* Certification in Accordance with CE, cUL, and UL 508 Listed
