TRANSFORMER; LOW PROFILE: 5VA, SEC-FULL LOAD VAC 2X12, CURRENT 208mA

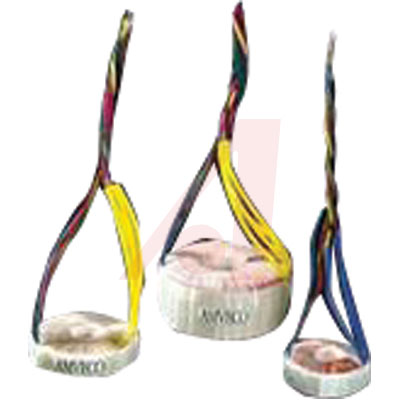

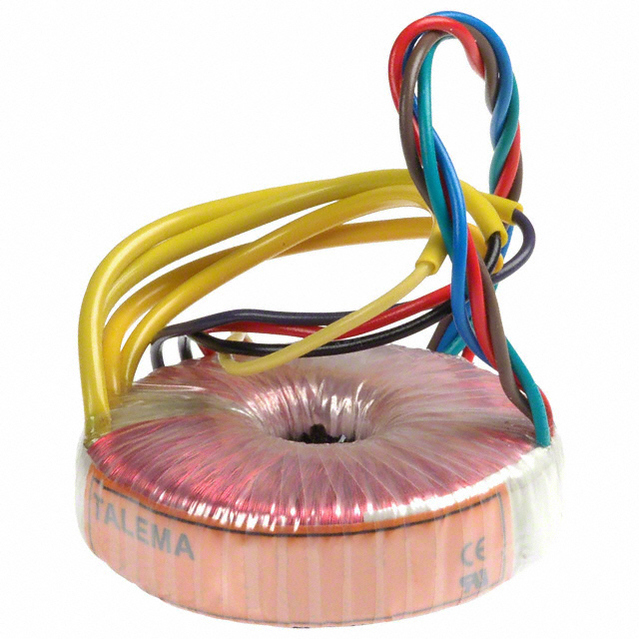

The 62000-Series Miniature toroidal step-down transformers offers the design engineer the same features as our larger toroidal power transformers, namely, very low EMR magnetic strayfields, quiet operation, low temperature rise, low profile, low no-load current and very low no-load losses.
**Features:
**
* Primary Voltage of 115 V or 230 V at 50/60 Hz
* Safety Standard Certification UL 506, Design Construction Meet UL 1950, VDE 0805, IEC 950, EN 60950
* UL Recognized for Insulation Class A 105C. Meets All Requirements of Class E 125°C
* UL Certifications to +40°C 1.6 VA-25 VA
* Hipot Testing at 4000 V Between Primary and Secondary. VDE0550
* Maximum Ambient Temperature of +60°C
* Epoxy Potted Center with Through Hole for M4 Bolt
