66F100

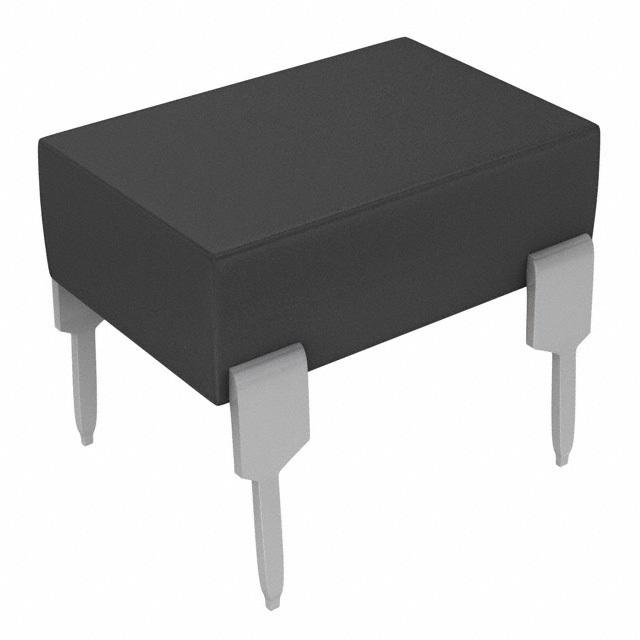

66F100图片1
66F100图片2
66F100图片3
66F100图片4
66F100图片5
66F100图片6
66F100概述

Single Trip Point Switch/Digital Sensor, Rectangular, 4Pin, Through Hole Mount, ROHS COMPLIANT, DIP-8

Bimetal Disc Thermostat Automotive


得捷:
THERMOSTAT 100DEG C SPST-NO 8DIP


艾睿:
Bimetal Disc Thermostat Close on Rise Automotive


Verical:
Bimetal Disc Thermostat Close on Rise Automotive


Newark:
# AIRPAX  66F100  Themostat, Subminiature, Bimetal Disc, 6600 Series, 100 °C, Normally Open, DIP


MASTER:
Bimetal Disc Thermostat Automotive


Online Components:
Bimetal Disc Thermostat Automotive


DeviceMart:
THERMOSTAT 100 DEG NO 8-DIP


Electro Sonic:
Bimetal Disc Thermostat Automotive


66F100中文资料参数规格
技术参数

电源电压DC 48.0V max

接触电阻 50.0 mΩ

额定电流Max 1 A

额定电流DC 1A @48V

工作温度Max 130 ℃

工作温度Min 40 ℃

额定电压DC Max 48 V

额定电压AC Max 120 V

接触电阻Max 50 mΩ

封装参数

安装方式 Through Hole

封装 DIP-8

外形尺寸

高度 3.30 mm

封装 DIP-8

物理参数

颜色 Black

工作温度 40℃ ~ 130℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买66F100
型号: 66F100
描述:Single Trip Point Switch/Digital Sensor, Rectangular, 4Pin, Through Hole Mount, ROHS COMPLIANT, DIP-8
