7106501301概述

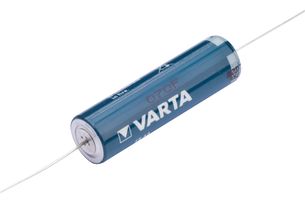

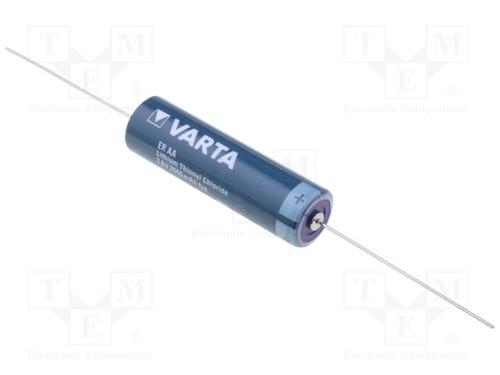

VARTA 7106501301 Battery, Lithium Thionyl Chloride, 2500 mAh, 3.6V, AA, Axial Leaded, 14.6mm

The is a Non-rechargeable Battery with primary lithium-thionyl-chloride technology and axial leaded terminals. It is ER AA CD type designation battery and has contact disc + wire.

.
MH 13654 UL recognition
.
-55 to 85°C Operating temperature range

Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 100°C 212°F, incinerate, short circuit or expose contents to water.

Keep battery out of reach of children and in original package until ready for use. Dispose of used batteries properly.

7106501301中文资料参数规格
封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

高度 50.5 mm

封装 Axial

物理参数

重量 16 g

其他

产品生命周期 Active

制造应用 Power Management

符合标准

RoHS标准 Non-Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买7106501301
型号: 7106501301
制造商: Varta
描述:VARTA 7106501301 Battery, Lithium Thionyl Chloride, 2500 mAh, 3.6V, AA, Axial Leaded, 14.6mm
