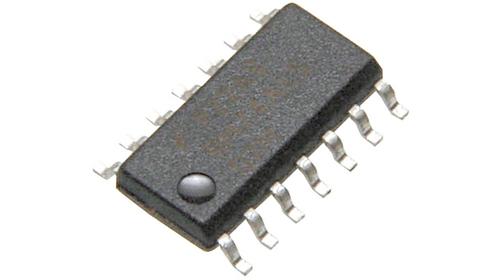

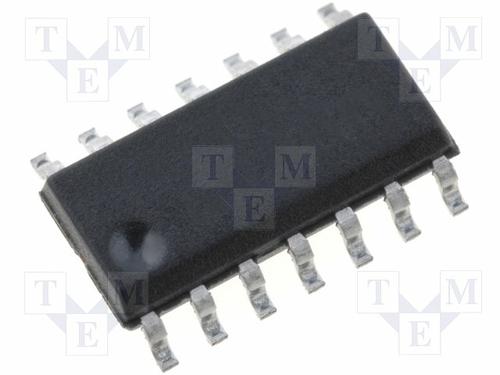

NXP 74HC74D 触发器, 设置和复位, 互补输出, 正沿, D, 14 ns, 76 MHz, 5.2 mA, SOIC, 14 引脚
The 74HC74 is a dual positive edge triggered D-type flip-flop. They have individual data nD, clock nCP, set nSD and reset nRD inputs, and complementary nQ and nQ outputs. Data at the nD-input, that meets the set-up and hold time requirements on the LOW-to-HIGH clock transition, is stored in the flip-flop and appears at the nQ output. Schmitt-trigger action in the clock input, makes the circuit highly tolerant to slower clock rise and fall times. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
频率 76 MHz
电源电压DC 5.00 V, 6.00 V max
输出电流 5.2 mA
通道数 2
针脚数 14
位数 2
极性 Non-Inverting, Inverting
逻辑门个数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 SOIC
封装 SOIC
产品生命周期 Unknown
包装方式 Each
制造应用 自动化与过程控制, 嵌入式设计与开发, 系统监控, Automation & Process Control, Clock & Timing, System Monitoring, Embedded Design & Development, 时钟与计时
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
74HC74D NXP 恩智浦 | 当前型号 | 当前型号 |
SN74HC74DR 德州仪器 | 功能相似 | 74HC74D和SN74HC74DR的区别 |
MC74HC74ADG 安森美 | 功能相似 | 74HC74D和MC74HC74ADG的区别 |
CD74HC74M96 德州仪器 | 功能相似 | 74HC74D和CD74HC74M96的区别 |
