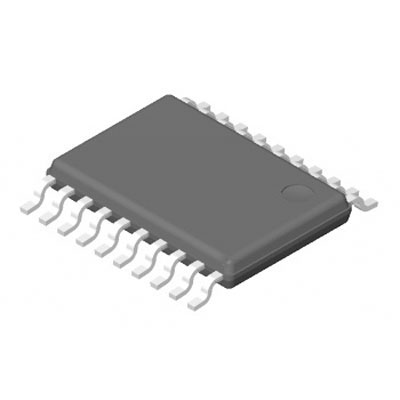

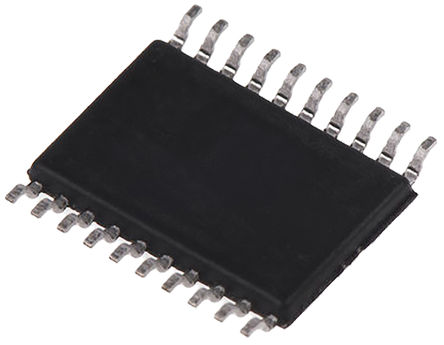

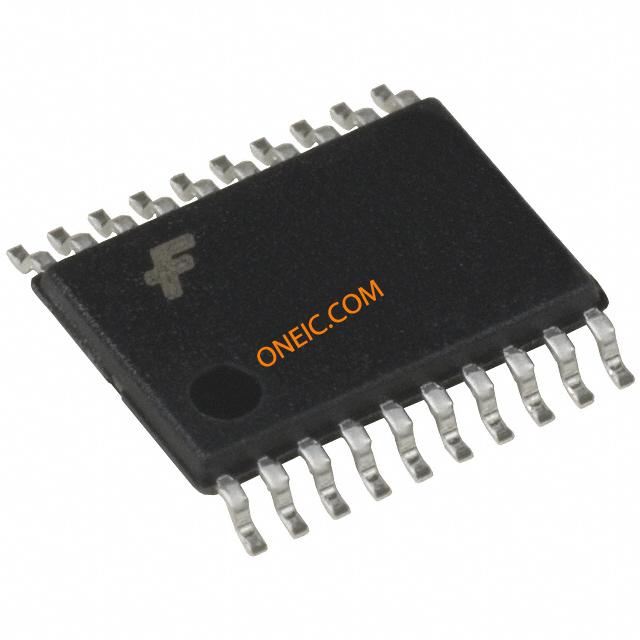

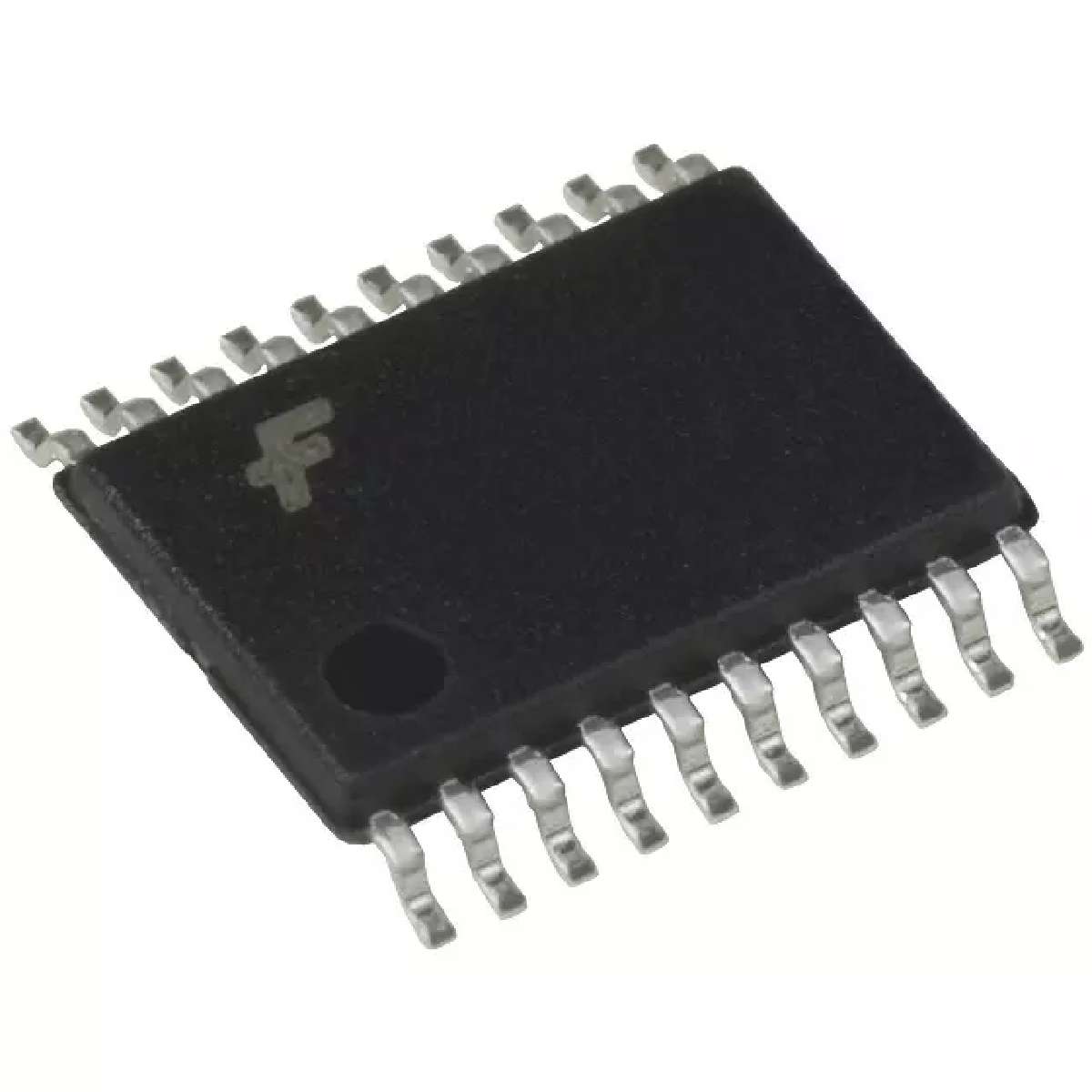

74ACT541MTC

74ACT 系列 5.5 V CMOS 八 缓冲器 / 线路驱动器 带3态输出 - TSSOP-20

The is an octal Buffer/Line Driver with 3-state outputs. It is designed to be employed as memory and address drivers, clock drivers and bus oriented transmitter/receivers. This device is similar in function to the 74AC244 and 74ACTC244 while providing flow-through architecture inputs on opposite side from outputs. This pin-out arrangement makes this device especially useful as an output port for microprocessors, allowing ease of layout and greater PC board density.

.

ICC and IOZ reduced by 50%

.

Inputs and outputs opposite side, allowing easier interface to microprocessors

.

Outputs source/sink 24mA

.

TTL-compatible inputs
