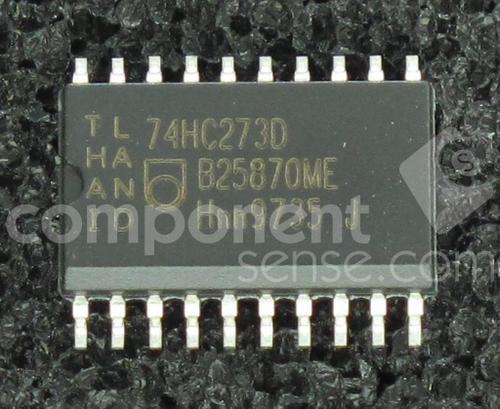

NXP 74HC273D 触发器, 复位, 非反相, 正沿, D, 13 ns, 66 MHz, 5.2 mA, SOIC, 20 引脚
The is an octal positive-edge triggered D-type Flip-flop features clock and master reset MR\\ inputs. The outputs Qn will assume the state of their corresponding Dn inputs that meet the set-up and hold time requirements on the low-to-high clock transition. A low on MR\ forces the outputs low independently of clock and data inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
频率 66 MHz
电源电压DC 5.00 V, 6.00 V max
输出电流 5.2 mA
电路数 8
针脚数 20
位数 8
极性 Non-Inverting
逻辑门个数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-163
长度 13 mm
宽度 7.6 mm
高度 2.45 mm
封装 SOIC-163
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Consumer Electronics, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
74HC273D NXP 恩智浦 | 当前型号 | 当前型号 |
74HC273N 恩智浦 | 完全替代 | 74HC273D和74HC273N的区别 |
TC74HC273AFWELP 东芝 | 类似代替 | 74HC273D和TC74HC273AFWELP的区别 |
SN74HC273DWR 德州仪器 | 功能相似 | 74HC273D和SN74HC273DWR的区别 |
