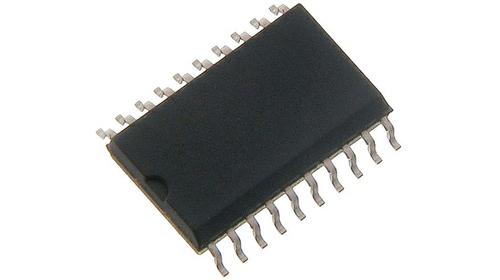

NXP 74HC245D 收发器, 非反相, 3态, 8门, 1输入, 2V至6V, SOIC-20
The is a octal bus transceiver with 3 state outputs in 20 pin SOIC package. This high speed Si-gate CMOS device is pin compatible with low power schottky TTL LSTTL. The 74HC245D octal transceiver features non inverting 3 state bus compatible outputs in both send and receives directions. It also features an output enable input for easy cascading, send/receive input DIR for direction control and control buses are effectively isolated.
电源电压DC 2.00V min
电路数 8
通道数 8
针脚数 20
位数 8
耗散功率 500 mW
逻辑门个数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
长度 13 mm
宽度 7.6 mm
高度 2.45 mm
封装 SOIC-20
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Unknown
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
