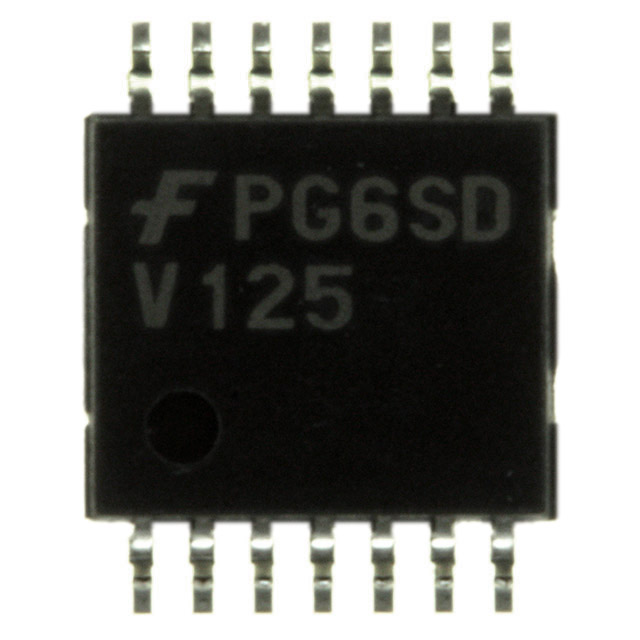

74VHC125MTCX

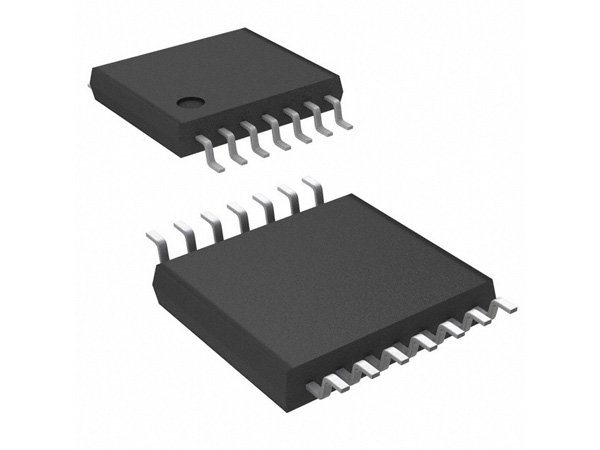

74VHC 系列 高速 四 缓冲器 带 3 态输出 - TSSOP-14

The is a non-inverting Quad Buffer with 3-state outputs. It is an advanced high-speed CMOS device fabricated with silicon gate CMOS technology and achieves the high-speed operation similar to equivalent bipolar Schottky TTL while maintaining the CMOS low power dissipation. An input protection circuit insures that 0 to 7V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5 to 3V systems and two supply systems such as battery backup. This circuit prevents device destruction due to mismatched supply and input voltages.

.

Power down protection is provided on all inputs

.

Pin and function compatible with 74HC125

.

Low noise - VOLP = 0.8V maximum

.

High speed - propagation delay tpd = 3.8ns typical at VCC = 5V
