74HC1G32GW

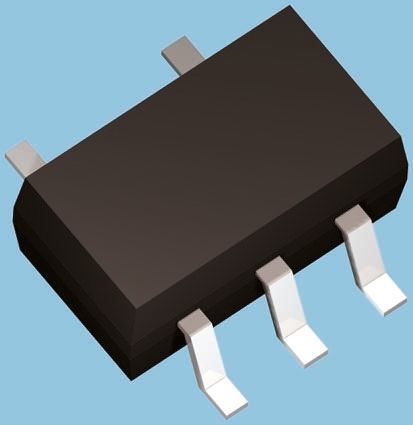

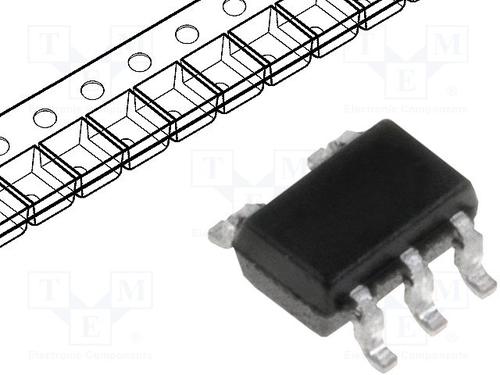

NXP  74HC1G32GW  或门, HC系列, 1门, 2输入, 2.6 mA, 2V至6V, SOT-353-5

逻辑类型Logic Type| 或门 OR Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 2V~6V 静态电流IqCurrent - Quiescent Max| 20uA 输出高，低电平电流Current - Output High, Low| -2.6mA，2.6mA 低逻辑电平Logic Level - Low| 0.5V~1.8V 高逻辑电平Logic Level - High| 1.5V~4.2V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 23ns @ 6V，50pF Description & Applications| 2-input OR gate；Features Symmetrical output impedance High noise immunity Low power dissipation Balanced propagation delays SOT353-1 and SOT753 package options 描述与应用| 双输入或门；特性 对称的输出阻抗 高抗干扰 低功耗 平衡传输时延 SOT353-1和SOT753封装选项
