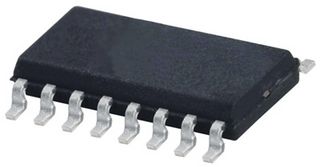

NXP 74HC75D 芯片, 74HC CMOS逻辑器件
The is a quad bistable Transparent Latch with complementary outputs. Two latches are simultaneously controlled by one of two active high enable inputs LE12 and LE34. When LEnn is high, the data enters the latches and appears at the nQ outputs. The nQ outputs follow the data inputs nD as long as LEnn is high transparent. The data on the nD inputs one set-up time prior to the high-to-low transition of the LEnn will be stored in the latches. The latched outputs remain stable as long as the LEnn is low. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
电源电压DC 2.00V min
输出电流 5.2 mA
电路数 4
针脚数 16
位数 4
逻辑门个数 4
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16
封装 SOIC
长度 10 mm
宽度 4 mm
高度 1.45 mm
封装 SOIC
产品生命周期 Unknown
包装方式 Each
制造应用 Consumer Electronics, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
