74LCX16245MTDX

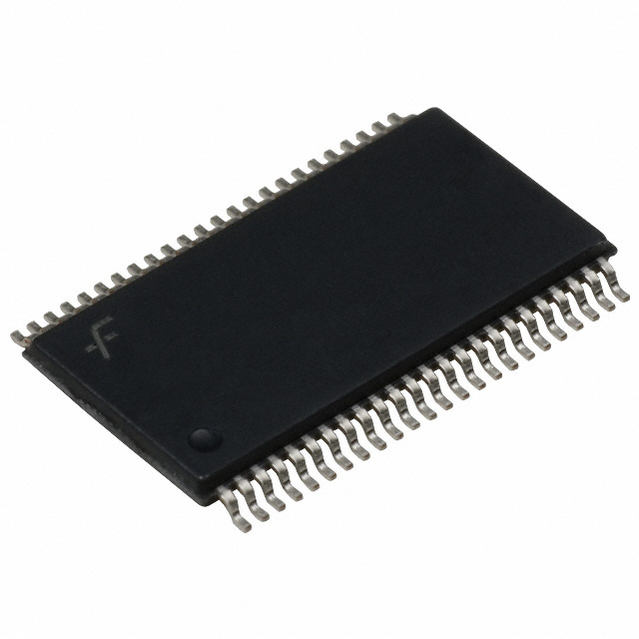

FAIRCHILD SEMICONDUCTOR  74LCX16245MTDX  收发器, 3态, 非反相, 2 V至3.6 V, TSSOP-48

The is a low voltage 16-bit non-inverting Buffer/Line Driver with 3-state outputs and is intended for bus oriented applications. The device is designed for low voltage 2.5 or 3.3V VCC applications with capability of interfacing to a 5V signal environment. The device is byte controlled. Each byte has separate control inputs which could be shorted together for full 16-bit operation. The T/R inputs determine the direction of data flow through the device. The OE inputs disable both the A and B ports by placing them in a high impedance state. The LCX16245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

.

Power down high impedance inputs and outputs

.

Uses patented noise/EMI reduction circuitry

.

Latch-up performance exceeds 500mA

.

5V Tolerant inputs and outputs

.

4.5ns Propagation delay tpd, 20µA ICCQ maximum

.

±24mA Output drive

.

Supports live insertion/withdrawal
