74AHC1G08GW

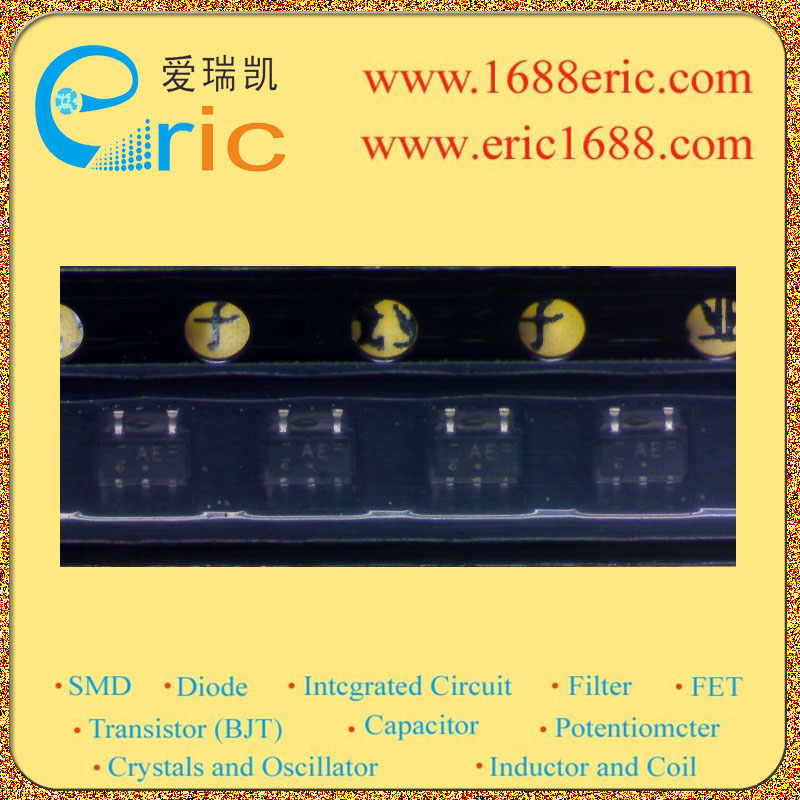

IC 与门 74AHC1G08GW SOT-353/SC-88A/TSSOP5 marking/标记 AE

逻辑类型Logic Type| 与门 AND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 2V~5.5V 静态电流IqCurrent - Quiescent Max| 1uA 输出高，低电平电流Current - Output High, Low| -8mA，8mA 低逻辑电平Logic Level - Low| 0.5V~1.65V 高逻辑电平Logic Level - High| 1.5V~3.85V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 7.9ns @ 4.5V ~ 5.5V，50pF Description & Applications| 2-input AND gate；FEATURES • Symmetrical output impedance • High noise immunity • ESD protection: – HBM EIA/JESD22-A114-A exceeds 2000 V – MM EIA/JESD22-A115-A exceeds 200 V – CDM EIA/JESD22-C101 exceeds 1000 V. • Low power dissipation • Balanced propagation delays • Very small 5-pin package • Output capability: standard • Specified from −40 to +125 °C 描述与应用| 2输入与门；特性 •对称的输出阻抗 •高抗干扰 •ESD保护： - HBM EIA/JESD22-A114-A超过2000 V - MM EIA/JESD22-A115-A超过200 V - CDM EIA/JESD22-C101超过1000 V。 •低功耗 •平衡传输延迟 •非常小的5引脚封装 •输出能力：标准 •额定温度范围从-40至+125°C
