74LCX245WM

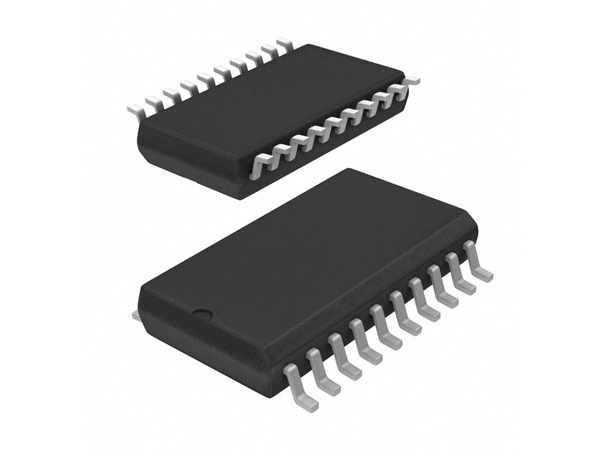

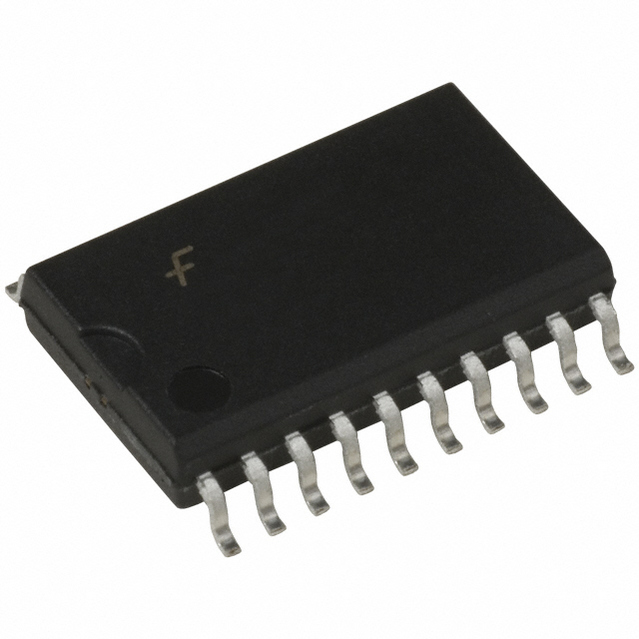

FAIRCHILD SEMICONDUCTOR  74LCX245WM  收发器, 非反相, 3态, 8门, 8输入, 2V至6V, SOIC-20

The is a low voltage non-inverting Bidirectional Transceiver with 3-state outputs and is intended for bus oriented applications. The device is designed for low voltage 2.5 and 3.3V VCC applications with capability of interfacing to a 5V signal environment. The T/R# input determines the direction of data flow through the device. The OE# input disables both the A and B ports by placing them in a high impedance state. The LCX245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

.

Power down high impedance inputs and outputs

.

Implements patented noise/EMI reduction circuitry

.

Latch-up performance exceeds 500mA

.

5V Tolerant inputs and outputs

.

7ns Propagation delay tpd, 10µA ICCQ maximum

.

±24mA Output drive

.

Supports live insertion/withdrawal
