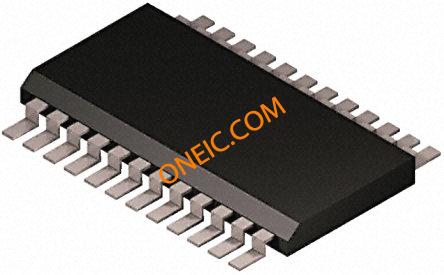

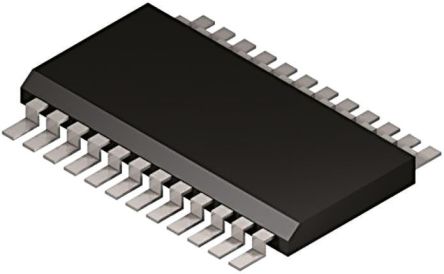

FAIRCHILD SEMICONDUCTOR  74LVXC3245MTCX  收发器, 3态, 双向, 2.7 V至3.6 V, TSSOP-24

The is a 8-bit dual-supply configurable voltage Interface Transceiver with 3-state outputs. It is suitable for PCMCIA and other real time configurable I/O applications. The VCCA pin accepts a 3V supply level. The A port is a dedicated 3V port. The VCCB pin accepts a 3 to 5V supply level. The B port is configured to track the VCCB supply level respectively. A 5V level on the VCC pin will configure the I/O pins at a 5V level and a 3V VCC will configure the I/O pins at a 3V level. The A port should interface with a 3V host system and the B Port to the card slots. This device will allow the VCCB voltage source pin and I/O pins on the B port to float when OE# is HIGH. This feature is necessary to buffer data to and from a PCMCIA socket that permits PCMCIA cards to be inserted and removed during normal operation.

.

Control inputs compatible with TTL level

.

Outputs source/sink up to 24mA

.

Guaranteed simultaneous switching noise level and dynamic threshold performance

.

Implements proprietary EMI reduction circuitry

.

Flexible VCCB operating range

.

Allows B port and VCCB to float simultaneously when OE# is HIGH

.

Functionally compatible with the 74 series 245
